11mm12 -12V Military Grade LED Indicator Light (Dimmable and Push-to-Test)
$99.00
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description

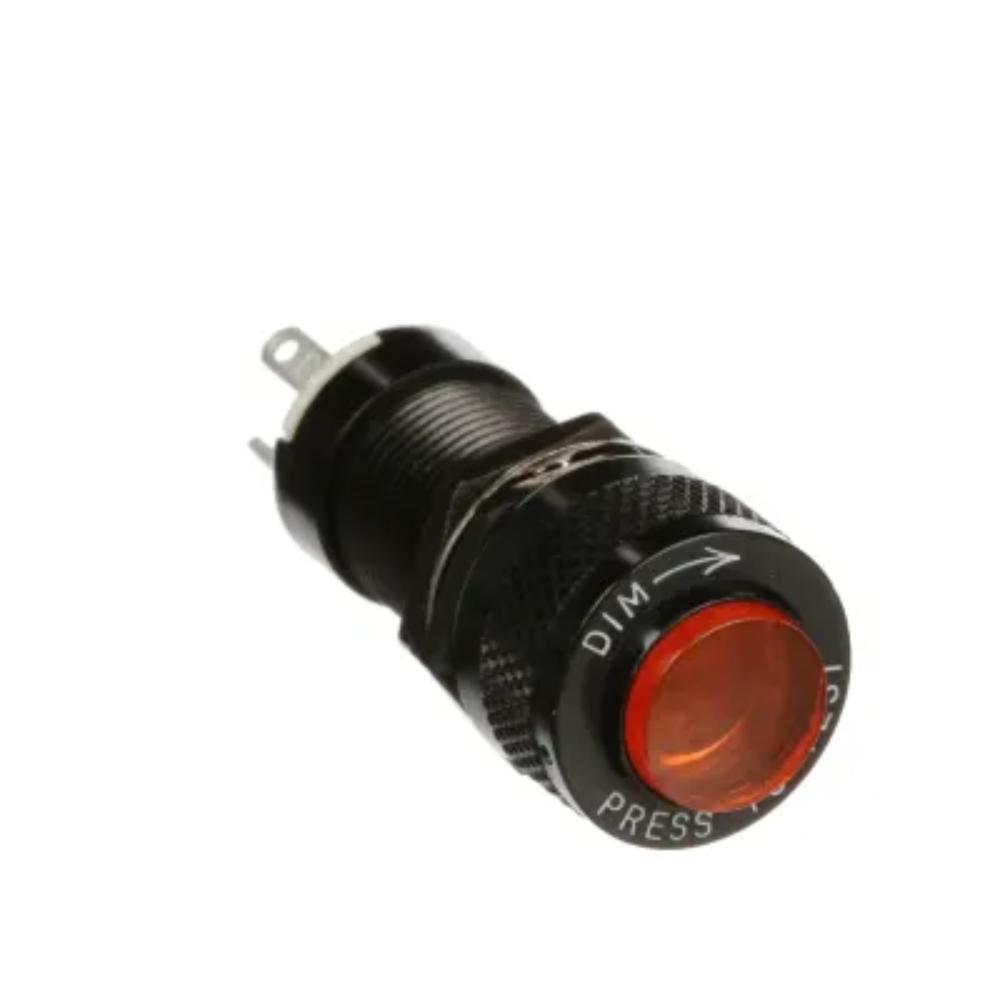

LED Press to Test indicator features a dimming actuator, LED replaceable lamp, and an amber lens. Military grade panel mount indicator meets or exceeds military specification MIL-L-3661B with high quality black anodized aluminum housing.
The 12V LED is easy to installation and compatible with a 10-15V electrical system. If you do not have an EFIS to connect to, this is a required indicator light if installing in a certified aircraft along with the ETX900-TSO battery. Detailed installation directions are located in the EarthX manual but it is very simple. To install, connect red wire to a positive bus connection, connect the black wire to fault monitoring wire (also black) that is located on the EarthX battery.

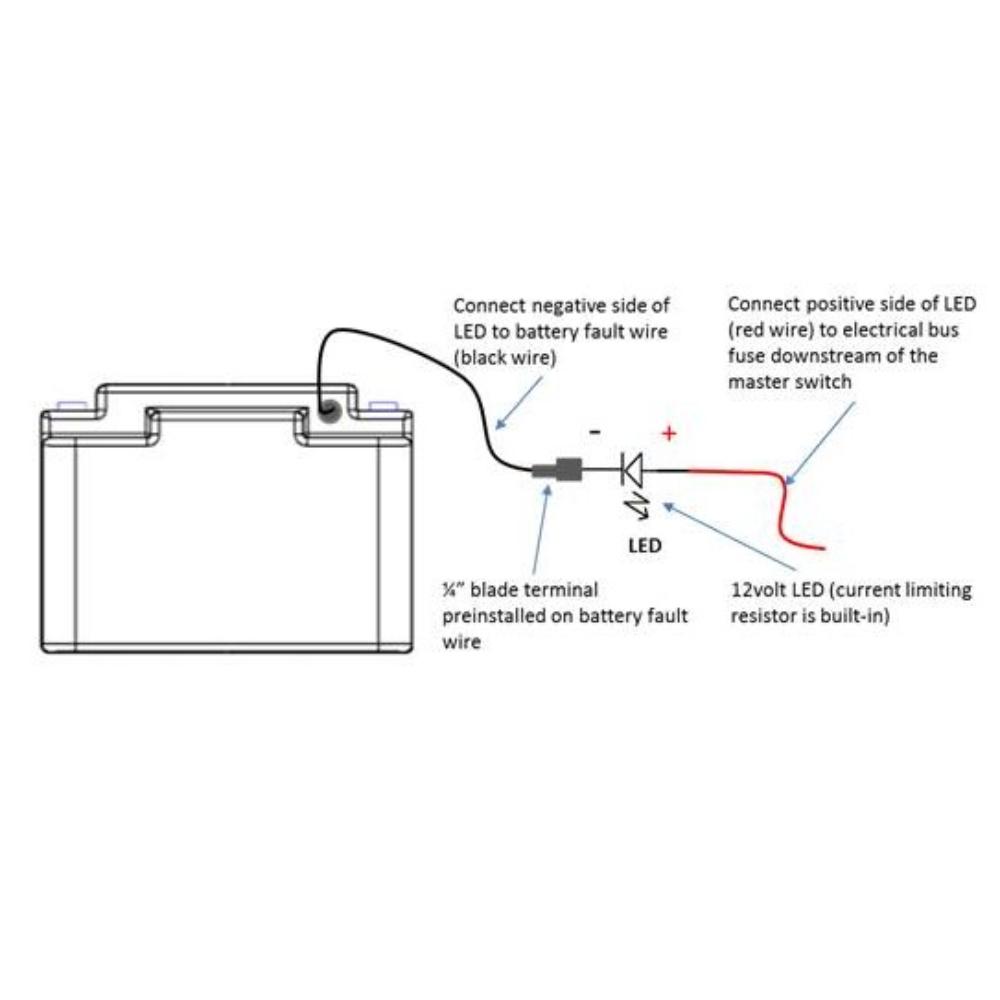

The positive wire (red wire) of the LED should be connected to the electrical bus (12volt positive), typically to a fuse/breaker downstream of the master switch. The negative of the LED (black wire) should be connected to the fault monitor wire (wire out the side of the battery) of the battery.
Steps:
1: Install the 12V LED light thru a hole in your control panel.
2: Cut the black wire to length desired for your installation so the LED’s black wire reaches the battery.
3: Use a wire stripper to remove ¼” of the wire. Then, attach the “male” spade connector to the black wire. Crimp the male spade connector to black wire.
4: Plug the male spade connector into the end of the pigtail wire from the battery.
5: Connect the red wire to an electrical bus fuse/breaker (.25-1 AMP). Most of the time it is most convenient to connect to a fuse on the back side of the panel. It could also be connected directly to the positive terminal of the battery with a ¼” ring lug connector.
What's Included:
- Color: Amber
- Voltage: 12V
- Drill bit size: 15/32″
Specifications:
- Wire 20ga – 20ft in length
- Mounting: Nut and Washer (included)
- Replaceable LED Lamp
- Fuse Holder with 1 Amp Fuse
No documentation currently available for this product
About EarthX Battery Accessories
EarthX battery accessories include a range of parts and components you can use to improve user experience. Our accessory categories include:
- Cables or External Power Plug: Use our EarthX battery connect cables to easily access your battery to charge or jump start your battery or external power plug.
- LED lights/placard: Attach an LED indicator light to your aircraft panel to alert you of something outside of normal conditions. Use our placard to determine what different light patterns mean.
- Over-voltage protection and empty cases: Integrate over-voltage protection devices to instantly shut off your alternator when the voltage exceeds an unsafe level.
- Terminal adapters: Count on our adapter kits when your vehicle requires side-mounted or front-mounted battery cables over top-mounting.
- Vent tubing, STC kits and foam inserts: This accessory category is for modifications with supplemental type certificates (STCs) for aircraft. Buy complete lithium battery STC kits, or vent tubing and foam inserts separately.
The Benefits of Buying Battery Accessories
Our battery accessories are an excellent way to get more from your LiFePO4 battery. With the help of these accessories, you can:
- Charge and jump start your battery
- Change the cable positioning of your battery
- Identify battery issues when they arise
- Protect your battery from exceeding safe voltage
- Easy and professional installation
Shop All Accessories for Lithium Batteries
From battery protection devices to connection cables, our battery accessories can help you get the most from your EarthX Batteries. Browse our accessory inventory and outfit your EarthX Batteries with everything you require. Need help finding the right accessories? Get in touch with our team.
