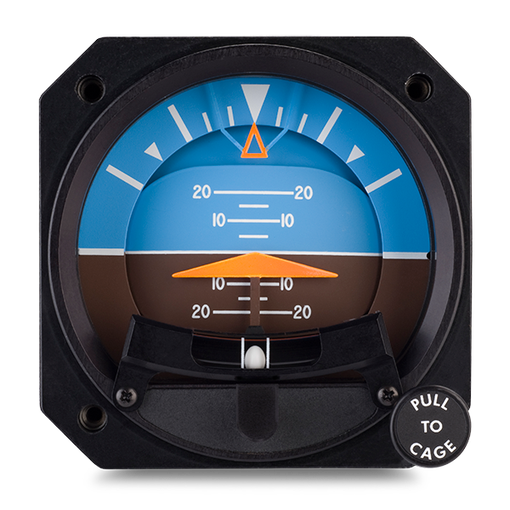

?? 4300-312 Attitude Indicator ??
Part Number: 4300-312
Model Number: 4300
Manufacturer: Mid-Continent Instruments and Avionics
Technical Description: Electric, 10–32 VDC, Fixed roll dial, Traditional symbolic aircraft
The minimum order quantity for P/N 4300-312 is 10 units
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
No product description currently available.
Benefits
- Versions available to match existing instrument/EFIS displays
- A safe alternative to unreliable vacuum systems
- Ideal primary or standby artificial horizon in fixed-wing and helicopter applications
- Single 4-pin connector installation
- 7,500 hours MTBF — more than double the life of most electric gyros
- 10–32 volt DC operation for use in both 14 and 28 volt aircraft
- Field-replaceable lighting
- Anti-reflective glass enhances visibility and reduces pilot fatigue
- FAA TSO-C4c certified and RTCA DO-160D qualified
- DO-160 qualified for helicopter vibration
- Designed and built in Wichita, Kansas, USA
- One-year limited warranty
Specifications
MTBF
7,500 Hours
Certification
FAA TSO-C4c
RTCA/DO-160D
Power Input
10–32 VDC:
1400 mA start, 600 mA max at 14 VDC input
700 mA start, 300 mA max at 28 VDC input
Annunciators
STBY PWR (standby power mode)
TEST (battery test — red/green)
Lighting
5, 14 or 28 VDC Incandescent
Field-replaceable tray wired through main connector
Glass
Special HEA anti-reflective coating
Weight
2.7 lbs.
Length
6.6 inches
Mounting:
Rear mount in standard 3 1/8” round panel cutout
Temperature Range
–30°C to +70°C (–22°F to +158°F)
Mating Connector
Mid-Continent P/N 9015514 (MS3116F8–4S)
Panel Tilt
Aircraft specific — calibrated at factory
Specify exact tilt between 0° to 20° when ordering
Dial
Fixed roll dial, traditional symbolic airplane
