5mm12 – 12V LED Indicator Light
$30.00
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
This is an EarthX battery accessory. The 12V LED battery accessory has a built in resistor. This makes for an easy installation and compatibility with a 10-15V electrical system. Details installation directions are located in the EarthX manual but it is very simple. To install, connect red wire to a positive bus connection. Then, connect the black wire to fault monitoring wire (also black) that is located on the EarthX battery.

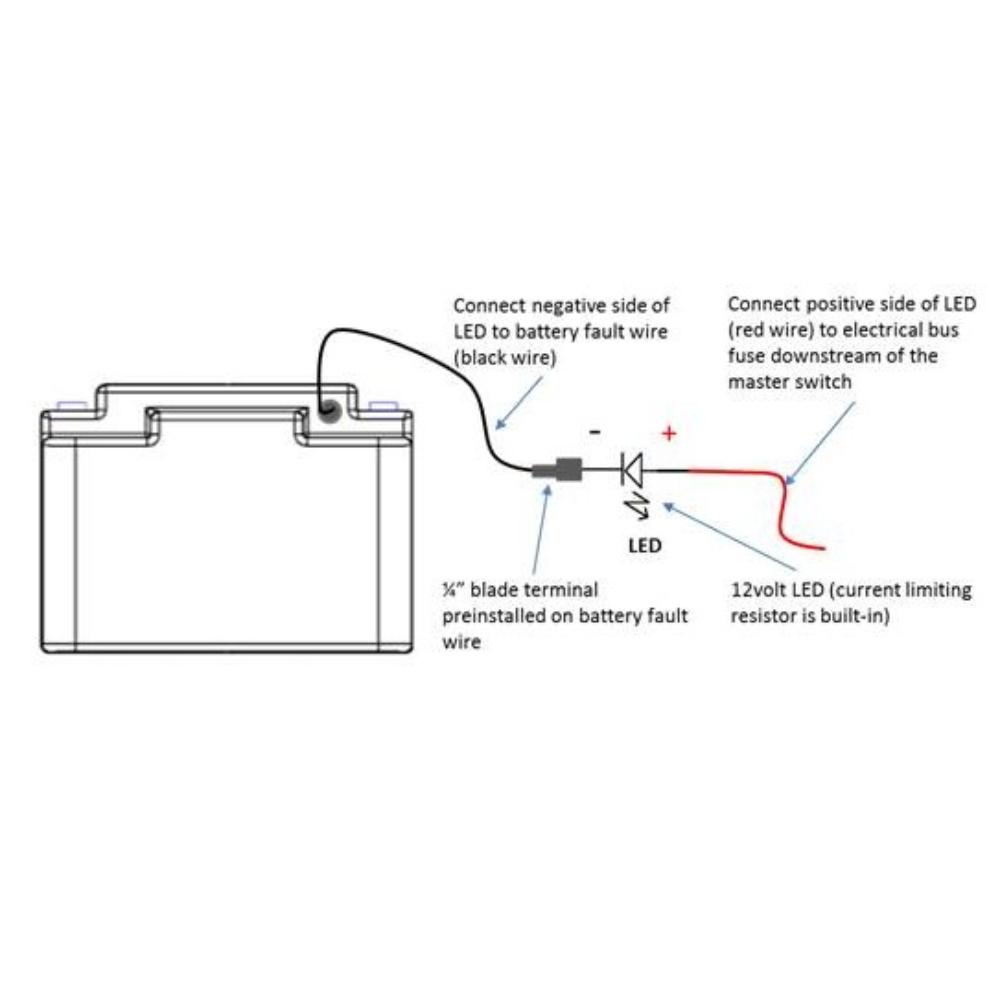

Connect the positive wire (red wire) of the LED to the electrical bus (12volt positive), typically to a fuse/breaker downstream of the master switch. Connect the negative of the LED (black wire) to the fault monitor wire (wire out the side of the battery) of the battery.
Steps:
1: install the 12V LED light thru a hole in your control panel.
2: cut the black wire to length desired for your installation so the LED’s black wire reaches the battery.
3: use a wire stripper to remove ¼” of the wire insulation so you can attach the “male” spade connector to the black wire. Crimp the male spade connector to black wire.
4: plug the male spade connector into the end of the pigtail wire from the battery.
5: connect the red wire to an electrical bus fuse/breaker (.25-1 AMP). May have to untwist wire and cut to length. Most of the time it is most convenient to connect to a fuse on the back side of the panel. If not, it could also be connected directly to the positive terminal of the battery with a ¼” ring lug connector.
Contact us if you have any questions about this 12V LED battery accessory.
Specifications:
- Color: Amber
- Mounting: Nut and Washer (included)
- Termination style: Wire 20ga- 48″ length
- Voltage: 12V
- Built in resistor: 500 ohm, 1/2 Watt
- Drill bit size: .325 or 5/16″
