6420302-2 SAM Standby Attitude Module

Name: 6420302-2 SAM Standby Attitude Module
Brand: Mid-Continent Instruments and Avionics
SKU: 6420302-2
Availability: InStock

Price range: $6,229.00 through $8,999.00

Part Number: 6420302-2

Model Number: MD302

Manufacturer: Mid-Continent Instruments and Avionics

Technical Description: Digital, 10–32 VDC, Attitude, Altitude, Airspeed, Slip, No battery, Black bezel

Frequently Bought Together

Purchase Type

Clear

Add to compare

Add to wishlist

Why Pilots Trust AVIA Avionics

Free Ground Shipping Over $399

Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.

Shipping Worldwide

We use DHL or UPS for worldwide shipments. Some shipments may require special processing.

No Sales Tax

Sales tax only applies where required by law.

5 Star Service, White Glove

Strong customer service with fast response times.

Talk to a Real Aviation Expert

Need help placing an order?

Description

Product Description

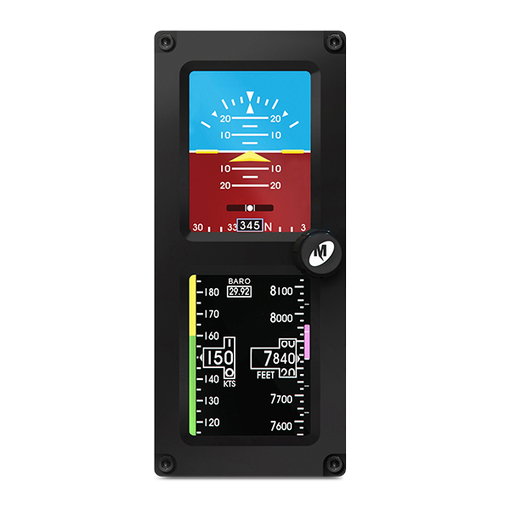

SAM^® is the only 2-inch, digital Standby Attitude Module that can be installed horizontally and vertically, giving you the most panel layout options. Featuring a black bezel and unique dual-screen display, SAM looks great and complements your existing instrument panel.

Benefits

Attitude, altitude, airspeed, slip, and vertical trend indication
Heading via MD32 Magnetometer (optional) or aircraft system
Five primary functions utilize modern solid-state MEMS gyro, accelerometer and pressure transducer technology
Small 2.4” x 5.5” footprint
Extremely lightweight — 1.6 lbs
Smooth, high-definition graphics
Unique, two-screen display with wide viewing angles and a user-friendly menu structure

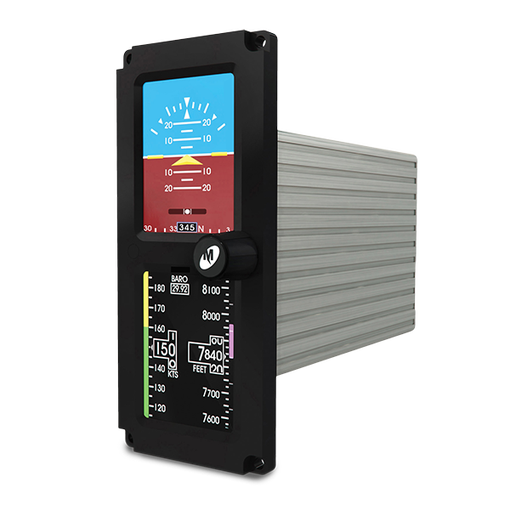

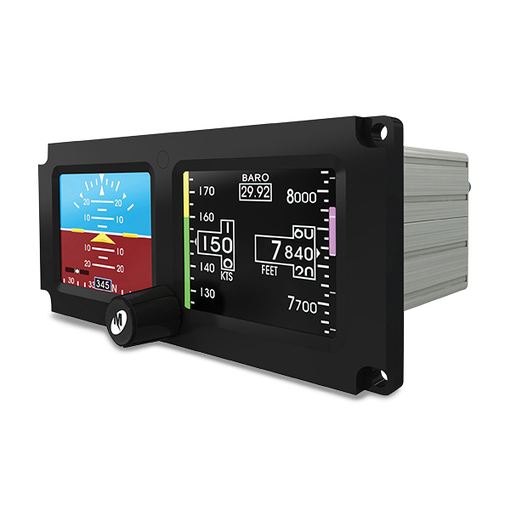

Selectable orientation — horizontal and vertical
Aircraft-specific, programmable airspeed range markings
Configurable for static source error correction (SSEC)
Simple user interface — one knob configures the display and provides menu control
10–32 VDC power input
External, automatic and manual dimming control settings
Software configurable lighting curves
Field-upgradable software via standard USB port
FAA / EASA / ANAC TSO certified to C2d, C3e, C4c, C6e, C10b, C106, C113a, C179a
RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
RTCA DO-160 and RTCA DO-311 qualified
Designed and built in Wichita, Kansas, USA
Two-year or 2,000-hour warranty

Specifications

Power Input
10-32 VDC; 6 W nominal, 40 W max

Output
ARINC 429 (high or low speed, see manual for specific labels)

Operating Range
Attitude: 300° per second pitch, roll and yaw (max)
Altitude: -1,500 to +55,000 ft (-457 m to 16,764 m)
Airspeed: 20 to 500 knots (23 to 575 mph) (37 to 926 kph)

Vertical Trend
6 second time frame

Heading
Within ± 2° up to 55°N or 45°S

Units of Measure
Altitude: Feet or meters
Barometric Setting: Inches of mercury, millibars
Airspeed: Knots, miles per hour or kilometers per hour

Panel Tilt
Configurable: -90° to +90° pitch

Panel Roll
Configurable: -5° to +5° roll

Lighting
5, 14 or 28 VDC external input or internal photocell
Programmable dimming curve

Pilot Interface
16-detent, push-and-turn knob

Weight
1.6 lbs (0.73 kg)

Bezel
Black

Mounting
Front panel mounted

Mating Connectors
Mid-Continent P/N 9017646 kit contains custom DB15 connector with configuration module, pitot and static connectors

Certification
FAA TSO certified to C2d, C3e, C4c, C6e (incomplete), C10b, C106, C113a, C179a
ANAC TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a
EASA ETSO certified to C2d, C3d (incomplete), C4c, C10b, C106, C113, C179a
RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
RTCA DO-160 and RTCA DO-311 qualified

Rights
U.S. Patent 9,739,611

Product Fliers and Brochures

Product Flier

SAM Brochure

Technical Documents

Pilots Guide

Service Notifications

FAA Approved Model List (AML)

AML STC SA01969SE

SAM^® Supplemental Type Certificates (STCs)

Have critical flight information at your fingertips. SAM perfectly mirrors your primary flight displays and improves your awareness with automatic baro sync, attitude recovery chevrons, and a highly-visible altitude trend line.

STC approved on 500+ aircraft models, SAM’s light-weight, compact design and selectable orientation ensures a perfect fit within your panel.

Select your aircraft manufacturer from the dropdown menu to view a list of applicable SAM^® MD302 Standby Attitude Module STCs.

Aerostar Aircraft Corporation

STC Number	Aircraft Model
SA01969SE	PA-60-600 PA-60-601 PA-60-601P PA-60-602P PA-60-700P

Air Tractor, Inc.

STC Number	Aircraft Model
SA01969SE	AT-602 AT-802 AT-802A

Airbus Helicopters

STC Number	Aircraft Model
SR03524NY	EC120 B
SR03524NY	EC130 B4 EC130 T2
10078884	EC135 P2
SR03524NY	AS350 B AS350 B1 AS350 B2 AS350 B3 AS350 BA AS350 D
SR03524NY	AS355 E AS355 F AS355 F1 AS355 F2 AS355 N AS355 NP

Aviat Aircraft Inc.

STC Number	Aircraft Model
SA01969SE	A-1 A-1A A-1B A-1C-180 A-1C-200

Britten-Norman

STC Number	Aircraft Model
SA01969SE	BN-2 BN-2A BN-2A-2 BN-2A-3 BN-2A-6 BN-2A-8 BN-2A-9 BN-2A-20 BN-2A-21 BN-2A-26 BN-2A-27 BN-2B-20 BN-2B-21 BN-2B-26 BN-2B-27 BN-2T BN-2T-4R
SA01969SE	BN2A MK. III BN2A MK. III-2 BN2A MK. III-3

Beechcraft Corporation (Textron Aviation Inc.)

STC Number	Aircraft Model
SA01969SE	35-33 35-A33 35-B33 35-C33 35-C33A 36 A36 A36TC B36TC E33 E33A E33C F33 F33A F33C G33 G36 H35 J35 K35 M35 N35 P35 S35 V35 V35A V35B
SA01969SE	56TC 58 58A 95 95-55 95-A55 95-B55 95-B55A 95-B55B (T-42) 95-C55 95-C55A A56TC B95 B95A D55 D55A D95A E55 E55A E95 G58
SA01969SE	65 (L-23F) 65-80 65-88 65-90 65-A80-8800 65-A80 65-B80 65-A90 65-A90-1 (JU-21A) 65-A90-1 (RU-21A) 65-A90-1 (RU-21B) 65-A90-1 (RU-21C) 65-A90-1 (RU-21D) 65-A90-1 (RU-21E) 65-A90-1 (RU-21H) 65-A90-1 (U-21A) 65-A90-1 (U-21G) A65 A65-8200 70 B90 C90 C90A C90GT C90GTi E90 H90 (T-44A)
SA01969SE	390
SA01969SE	99 99A (FACH) 99A 100 A100 (U-21F) A99 A99A B99 B100 C99
SA01969SE	400A
SA01969SE	58P 58PA 58TC 58TCA
SA01969SE	200 200C 300 300LW 1900 1900C (C-12J) 1900C 1900D B200 B200C B200CT B200GT 200T
SA01969SE	F90

Bombardier Inc.

STC Number	Aircraft Model
ST03860NY	CL-600-2B16 (CL-601-3A) CL-600-2B16 (CL-601-3R) CL-600-2B16 (CL-604)

Cessna Aircraft Company (Textron Aviation Inc.)

STC Number	Aircraft Model
SA01969SE	310 310A (USAF U-3A) 310B 310C 310D 310E (USAF U-3B) 310F 310G 310H 310I 310J-1 310J 310K 310L 310N 310P 310Q 310R E310H E310J T310P T310Q T310R
SA01969SE	182 182A 182B 182C 182D 182E 182F 182G 182H 182J 182K 182L 182M 182N 182P 182Q 182R 182S 182T R182 T182 T182T TR182
SA01969SE	210-5 (205) 210-5A (205A) 210 210A 210B 210C 210D 210E 210F 210G 210H 210J 210K 210L 210M 210N 210R P210N P210R T210F T210G T210H T210J T210K T210L T210M T210N T210R
SA01969SE	320-1 320 320A 320B 320C 320D 320E 320F 335 340 340A
SA01969SE	LC40-550FG LC41-550FG LC42-550FG T240
SA01969SE	510
SA01969SE	206 206H P206 P206A P206B P206C P206D P206E T206H TP206A TP206B TP206C TP206D TP206E TU206A TU206B TU206C TU206D TU206E TU206F TU206G U206 U206A U206B U206C U206D U206E U206F U206G
SA01969SE	401 401A 401B 402 402A 402B 402C 411 411A 414 414A 421 421A 421B 421C 425
SA01969SE	501 551
SA01969SE	441
SA01969SE	208 208B
ST04416CH	560XL

Cirrus Design Corporation

STC Number	Aircraft Model
SA01969SE	SR20 SR22 SR22T

Dassault Aviation

STC Number	Aircraft Model
ST04533CH	Falcon 900

Diamond Aircraft Industries GmbH

STC Number	Aircraft Model
SA01969SE	DA40, DA40 F, DA40 NG
SA01969SE	DA42, DA42 M-NG, DA42 NG

Discovery Aviation, Inc. (Previously Liberty Aerospace)

STC Number	Aircraft Model
SA01969SE	XL-2

Dornier Luftfahrt GmbH

STC Number	Aircraft Model
SA01969SE	Do 28 D Do 28 D-1 Dornier 228-100 Dornier 228-101 Dornier 228-200 Dornier 228-201 Dornier 228-202 Dornier 228-212

Embraer S.A.

STC Number	Aircraft Model
ST00895DE	EMB-120 EMB-120ER EMB-120FC EMB-120QC EMB-120RT
SA01969SE	EMB-500
SA01969SE	EMB-505

Gippsland Aeronautics Pty. Ltd

STC Number	Aircraft Model
SA01969SE	GA8 GA8-TC320

Interceptor Aircraft Inc.

STC Number	Aircraft Model
SA01969SE	200 200A 200B 200C 200D 400

Learjet Inc. (Bombardier Inc.)

STC Number	Aircraft Model
ST04270CH	31 31A 35 35A (C-21A) 36 36A
ST04270CH	45

Discovery Aviation, Inc. (Previously Liberty Aerospace)

STC Number	Aircraft Model
SA01969SE	XL-2

M7 Aerospace LLC

STC Number	Aircraft Model
SA04405CH	SA227-CC SA227-DC (C-26B)
SA04405CH	SA26-AT SA26-T SA226-AT SA226-T SA226-T(B) SA227-AT SA227-TT
SA04405CH	SA226-TC SA227-AC (C-26A) SA227-BC (C-26A) SA227-PC

Mitsubishi Heavy Industries, Ltd.

STC Number	Aircraft Model
SA01969SE	MU-2B-25 MU-2B-26 MU-2B-26A MU-2B-35 MU-2B-36 MU-2B-36A MU-2B-40 MU-2B-60
SA01969SE	MU-2B MU-2B-10 MU-2B-15 MU-2B-20 MU-2B-25 MU-2B-26 MU-2B-30 MU-2B-35 MU-2B-36

Mooney International Corporation

STC Number	Aircraft Model
SA01969SE	M20 M20A M20B M20C M20D M20E M20F M20G M20J M20K M20L M20M M20R M20S M20TN
SA01969SE	M22

Pacific Aerospace Limited

STC Number	Aircraft Model
SA01969SE	750XL

Piaggio Aero Industries S.p.A.

STC Number	Aircraft Model
SA01969SE	P-180

Pilatus Aircraft Limited

STC Number	Aircraft Model
SA01969SE	PC-6 PC-6-H1 PC-6-H2 PC-6/350 PC-6/350-H1 PC-6/350-H2 PC-6/A PC-6/A-H1 PC-6/A-H2 PC-6/B-H2 PC-6/B1-H2 PC-6/B2-H2 PC-6/B2-H4 PC-6/C-H2 PC-6/C1-H2
SA01969SE	PC-7
SA01969SE	PC-12 PC-12/45 PC-12/47 PC-12/47E

Piper Aircraft, Inc.

STC Number	Aircraft Model
SA01969SE	PA-24 PA-24-250 PA-24-260 PA-24-400
SA01969SE	PA-28-140 PA-28-150 PA-28-151 PA-28-160 PA-28-161 PA-28-180 PA-28-181 PA-28-201T PA-28-235 PA-28-236 PA-28R-180 PA-28R-200 PA-28R-201 PA-28R-201T PA-28RT-201 PA-28RT-201T PA-28S-160 PA-28S-180
SA01969SE	PA-44-180 PA-44-180T
SA01969SE	PA-31 PA-31-300 PA-31-325 PA-31-350
SA01969SE	PA-42 PA-42-720 PA-42-1000
SA01969SE	PA-46-310P PA-46-350P PA-46-500TP PA-46R-350T
SA01969SE	PA-42-720R
SA01969SE	PA-32-260 PA-32-300 PA-32-301 PA-32-301FT PA-32-301T PA-32-301XTC PA-32R-300 PA-32R-301 (HP) PA-32R-301 (SP) PA-32R-301T PA-32RT-300 PA-32RT-300T PA-32S-300
SA01969SE	PA-34-200 PA-34-200T PA-34-220T
SA01969SE	PA-31P PA-31P-350 PA-31T PA-31T1 PA-31T2 PA-31T3
SA00762DE	PA-46-350P PA-46-500TP PA-46R-350T

Quest Aircraft Design, LLC (Daher Aerospace)

STC Number	Aircraft Model
SA01969SE	Kodiak 100

Sikorsky Aircraft Corporation

STC Number	Aircraft Model
SR03281CH	269C

SOCATA

STC Number	Aircraft Model
SA01969SE	TB 9 TB 10 TB 20 TB 21 TB 200
SA01969SE	TBM 700

Twin Commander Aircraft LLC

STC Number	Aircraft Model
SA01969SE	690 690A 690B 690C 690D 695 695A 695B
SA01969SE	500 500A 500B 500S 500U 520 560 560A 560E
SA01969SE	700

Viking Air Limited

STC Number	Aircraft Model
SA02075SE	DHC-6-1 DHC-6-100 DHC-6-200 DHC-6-300 DHC-6-400

Vulcanair S.p.A.A31EU

STC Number	Aircraft Model
SA02075SE	AP68TP-300 "Spartacus" AP68TP.600 "Viator" P.68 P.68 "Observer" P.68 "Observer 2" P.68B P.68C P.68C-TC P.68R P.68TC "Observer"
