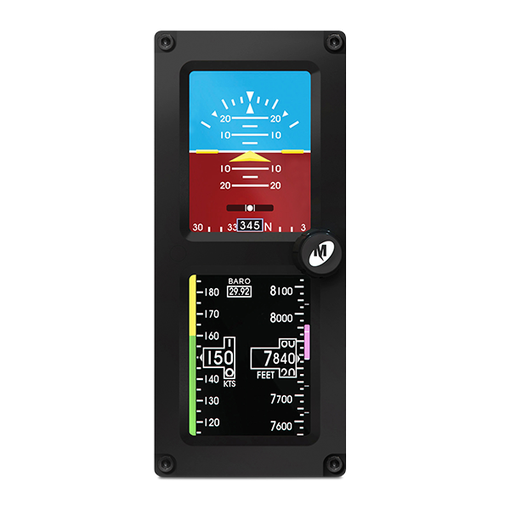

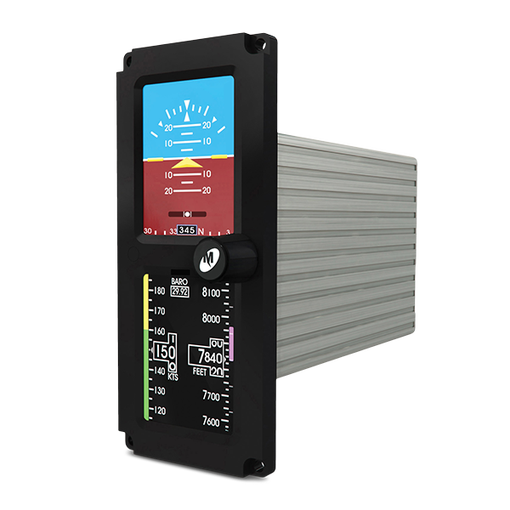

6420302-7 SAM Standby Attitude Module

Name: 6420302-7 SAM Standby Attitude Module
Brand: Mid-Continent Instruments and Avionics
SKU: 6420302-7
Availability: InStock

$8,999.00

Part Number: 6420302-7

Model Number: MD302

Manufacturer: Mid-Continent Instruments and Avionics

Technical Description: Digital, 10–32 VDC, Attitude, Altitude, Airspeed, Slip, Internal battery (NiMH), Black bezel

Frequently Bought Together

Add to compare

Add to wishlist

Why Pilots Trust AVIA Avionics

Free Ground Shipping Over $399

Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.

Shipping Worldwide

We use DHL or UPS for worldwide shipments. Some shipments may require special processing.

No Sales Tax

Sales tax only applies where required by law.

5 Star Service, White Glove

Strong customer service with fast response times.

Talk to a Real Aviation Expert

Need help placing an order?

Description

Product Description

Maximize your panel space. SAM^® is the only 2-inch digital Standby Attitude Module that can be installed horizontally and vertically. It provides attitude, altitude, airspeed, slip, vertical trend and heading. This unit features a rechargeable, nickel metal hydride battery that keeps you flying in the event of electrical failure. SAM looks great in your cockpit with its compact size, dual-screen display and black bezel.

The right standby is a must. SAM^®, you gotta' have it.

Save Space

Maximize your panel space. Fly with the only digital standby that can be installed horizontally and vertically to fit in the tightest spaces.

Save Time

Don’t waste time on unreliable equipment and complicated installations. SAM’s self-contained design, flexible configuration, and STC approval on more than 500 aircraft models simplifies installation, saving you time and money.

Save the Day

SAM’s rechargeable, internal battery saves the day and keeps you flying in the event of electrical failure. You’ll have one hour of emergency power and the critical time you need to land safely.

Benefits

Attitude, altitude, airspeed, slip, and vertical trend indication
Heading via MD32 Magnetometer (optional) or aircraft system
Five primary functions utilize modern solid-state MEMS gyro, accelerometer and pressure transducer technology
Small 2.4” x 5.5” footprint
Extremely lightweight — 1.6 lbs
Self-contained, rechargeable, field-replaceable emergency battery
Smooth, high-definition graphics
Unique, two-screen display with wide viewing angles and a user-friendly menu structure
Selectable orientation — horizontal and vertical
Aircraft-specific, programmable airspeed range markings
Configurable for static source error correction (SSEC)
Simple user interface — one knob configures the display and provides menu control
10–32 VDC power input
External, automatic and manual dimming control settings
Software configurable lighting curves
Field-upgradable software via standard USB port
Night Vision Imaging System (NVIS) Compatible (available)
FAA / EASA / ANAC TSO certified to C2d, C3e, C4c, C6e, C10b, C106, C113a, C179a
RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
RTCA DO-160 and RTCA DO-311 qualified
Designed and built in Wichita, Kansas, USA
Two-year or 2,000-hour warranty

Specifications

Power Input
10-32 VDC; 6 W nominal, 40 W max

Output
ARINC 429 (high or low speed, see manual for specific labels)

Operating Range
Attitude: 300° per second pitch, roll and yaw (max)
Altitude: -1,500 to +55,000 ft (-457 m to 16,764 m)
Airspeed: 20 to 500 knots (23 to 575 mph) (37 to 926 kph)

Vertical Trend
6 second time frame

Heading
Within ± 2° up to 55°N or 45°S

Units of Measure
Altitude: Feet or meters
Barometric Setting: Inches of mercury, millibars
Airspeed: Knots, miles per hour or kilometers per hour

Panel Tilt
Configurable: -90° to +90° pitch

Panel Roll
Configurable: -5° to +5° roll

Lighting
5, 14 or 28 VDC external input or internal photocell
Programmable dimming curve

Pilot Interface
16-detent, push and turn knob

Weight
1.6 lbs (0.73 kg)

Bezel
Black

Battery
Rechargeable, field-replaceable, internal battery
Technology: Nickel metal hydride
Run time: 60 minutes minimum when fully charged and properly maintained

Mounting
Front panel mounted

Mating Connectors
Mid-Continent P/N 9017646 kit contains custom DB15 connector with configuration module, pitot and static connectors

Certification
FAA TSO certified to C2d, C3e, C4c, C6e (incomplete), C10b, C106, C113a, C179a
ANAC TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a
EASA ETSO certified to C2d, C3d (incomplete), C4c, C10b, C106, C113, C179a
RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
RTCA DO-160 and RTCA DO-311 qualified

Rights
U.S. Patent 9,739,611

Product Fliers and Brochures

Product Flier

SAM Brochure

Technical Documents

Pilots Guide

Service Notifications

FAA Approved Model List (AML)

AML STC SA01969SE

SAM^® Supplemental Type Certificates (STCs)

Have critical flight information at your fingertips. SAM perfectly mirrors your primary flight displays and improves your awareness with automatic baro sync, attitude recovery chevrons, and a highly-visible altitude trend line.

STC approved on 500+ aircraft models, SAM’s light-weight, compact design and selectable orientation ensures a perfect fit within your panel.

Select your aircraft manufacturer from the dropdown menu to view a list of applicable SAM^® MD302 Standby Attitude Module STCs.
