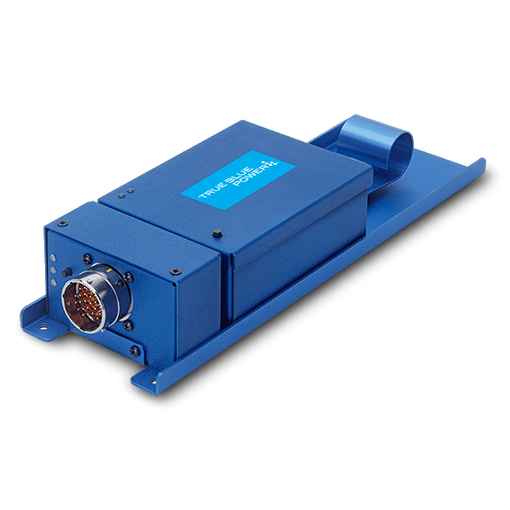

6430032-1 Emergency Battery Power Supply
$3,333.00
Part Number: 6430032-1
Model Number: TS32
Manufacturer: Mid-Continent Instruments and Avionics
Technical Description: 6.2 VDC, 7 A, 32 Wh, NiMH
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Technical Description
Benefits
- Provides reliable DC power for critical equipment and emergency lighting in the event of main aircraft power failure
- 6.2 VDC nominal, 7 amps maximum output power
- Utilizes Nickel Metal Hydride (NiMH) battery technology
- Can be fully recharged or maintain existing full charge via the aircraft’s primary power bus
- Direct replacement for Radiant RPS1-A / B; 2013-1A power supply and battery pack
- Direct replacement for Bruce Industries 100865; 2013-BR power supply and battery pack
- 4–6 years battery life expectancy
- 2-year on-wing capacity check with no removal required
- Designed and built in Wichita, Kansas USA
- Two-year limited warranty
- FAA TSO Certified
Specifications
Capacity
32 watt-hour
Input Voltage
16 – 32 VDC
Output Power
6.2 VDC nominal, 7 amps maximum
Run Time
153 minutes @ 2.0 amps
Technology
Nickel Metal Hydride (NiMH)
Weight
1.85 lbs. (0.84 kg)
Dimensions
10.8”L x 3.3”W x 2.0”H
(274mm x 84mm x 51mm)
Power Supply and Battery Pack Direct Replacement
Radiant RPS1-A / B; 2013-1A
Bruce Industries 100865; 2013-BR
Battery Life Expectancy
4 – 6 years
Protection
Short circuit, under temperature, over temperature, under-voltage, over-voltage, and EMI filtering

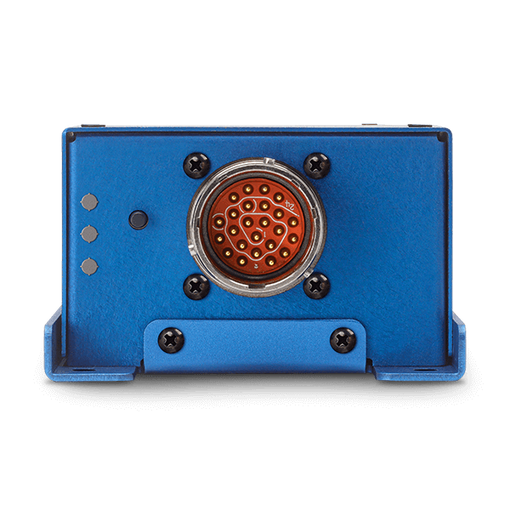

Mating Connector
C48-16R16-24S-100
MS24266R16B24SN
Case
Anodized aluminum
Certification
FAA TSO-C173a certified
DO-293A qualified
RTCA DO-160G qualified
