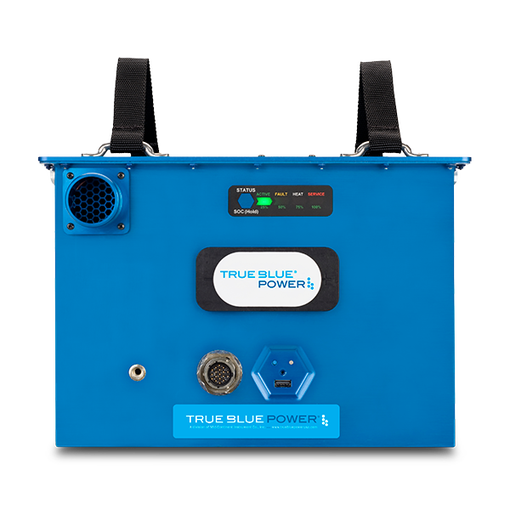

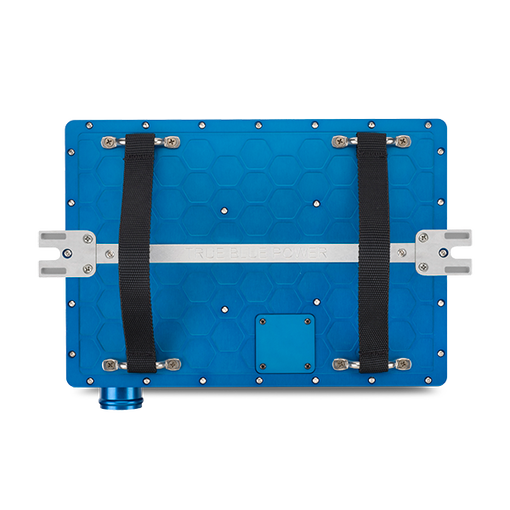

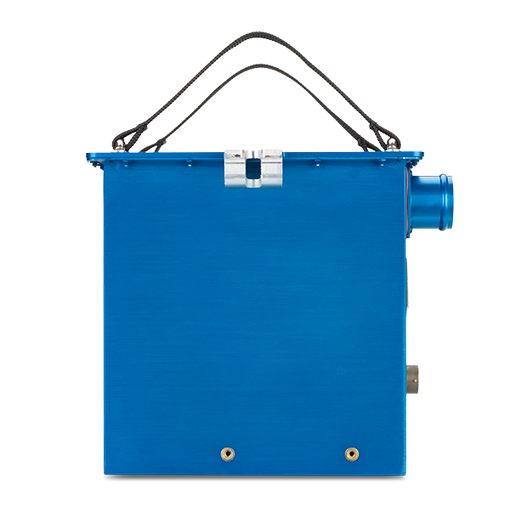

?? 6430040-1 Lithium-ion Aircraft Battery ??
Part Number: 6430040-1
Model Number: Gen5 TB40
Manufacturer: Mid-Continent Instruments and Avionics
Technical Description: 26.4 VDC, 40 Ah, Lithium-ion, TSO
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Product Description
Reduce your aircraft battery weight by up to 40 pounds per battery and increase your useful load. The True Blue Power Gen5 TB40 Lithium-ion Aircraft Battery is TSO certified, features a built-in automatic heater and allows you to fully recharge within 30 minutes. This intelligent battery is engineered with a Built-in Test (BIT) indicator to communicate real-time state-of-change and state-of-health data, on demand.
Get started with certified lithium-ion aircraft batteries
Start Lighter
True Blue Power batteries are the lightest and most compact, saving you up to 85 pounds per battery. Our efficient design gives you more power per pound than any other aircraft battery. Less weight means more passengers, more cargo, more fuel, and more design flexibility.
Start Faster
True Blue Power batteries give you cooler and faster engine starts, capable of 7 starts in 7 minutes. Turboprop engines, like the Pratt & Whitney PT6A, start in half the time and, typically, 100° cooler. Our sophisticated design allows your battery to fully recharge within 30 minutes and constant voltage helps eliminate hot starts. An automatic, built-in heater ensures your aircraft outperforms all others in extreme temperatures, from -40°C to +70°C.
Start Smarter
True Blue Power batteries feature charge current limiting, overcharge, over-discharge, over-current, short circuit, over-temperature and under-temperature protection. Even smarter, you’ll save time and money with the longest-lasting aircraft batteries on the market. True Blue Power batteries last 8 years. That’s up to 4x longer than lead acid and NiCad.
Benefits
- 40 amp-hour nominal at 23°C/73°F
- Weighs 36.6 lbs. — up to 60% less than lead-acid and NiCad solutions
- Advanced NanoPhosphate® lithium-ion cell chemistry
- Higher voltage during engine start — Less wear, less maintenance and increased useful life
- Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
- More than 1 amp-hour per pound
- Automatic internal heater
- Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
- Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
- On-condition maintenance
- Designed and built in Wichita, Kansas, USA
- FAA TSO Certified
- Two-year limited warranty
Specifications
Capacity
40 amp-hour nominal (at 23°C/73°F)
Charge Voltage
28 VDC nominal
Output Voltage
26.4 VDC nominal
Output Current
525 A continuous (1,500 A max)
Technology
Advanced NanoPhosphate® lithium-ion cell chemistry
Energy Density
63.2 Wh/kg (73.0 Wh/liter)
Charge Current Limiting
Programmable up to 8C or unlimited
Operating Temperature
-40°C to +70°C (-40°F to +158°F)
Weight
36.6 lbs. (16.7 kg)
Dimensions
9.1”L x 14.4”W x 8.9”H
Configuration
16P8S; 4 parallel x 8 in series x 4
Battery Life Expectancy
8 years (average)
Maintenance
On-condition
Case
Anodized aluminum, blue
Certification
FAA TSO-C179b (Class A-4B)
RTCA DO-311A
RTCA DO-160G
RTCA DO-178C DAL A
UNDOT/IATA
Product Comparison | ||||
| Model Number | TB40 | TB30 | TB50 | TB60 |
| Part Numbers | 6430040-1, 6430040-2 | 6430030-1, 6430030-2 | 6430050-1 | 6431060-1 |
| Capacity | 40 amp-hour nominal (at 23°C/73°F) | 30 amp-hour nominal (at 23°C/73°F) | 50 amp-hour nominal (at 23°C/73°F) | 60 amp-hour nominal (at 23°C/73°F) |
| Weight | 36.6 lbs. (16.7 kg) | 27.7 lbs. (12.6 kg) | 43.9 lbs. (19.9 kg) | 52.9 lbs. (24.0 kg) |
| Charge Voltage | 28 VDC nominal | 28 VDC nominal | 28 VDC nominal | 28 VDC nominal |
| Output Voltage | 26.4 VDC nominal | 26.4 VDC nominal | 26.4 VDC nominal | 26.4 VDC nominal |
| Output Current | 525A continuous (1500A max) | 575A continuous (1500A max) | 460A continuous (1500A max) | 425A continuous (1500A max) |
| Recharge Time | Configurable Charge Current Limiting: 15 minutes to fully recharge when configured for max charge current | Configurable Charge Current Limiting: 15 minutes to fully recharge when configured for max charge current | Configurable Charge Current Limiting: 15 minutes to fully recharge when configured for max charge current | Configurable Charge Current Limiting: 15 minutes to fully recharge when configured for max charge current |
| Dimensions | 9.1”L x 14.4”W x 8.9”H | 12.5”L x 8.6"W x 8.8”H | 10.0”L x 9.6”W x 10.1”H | 12.5”L x 14.4”W x 8.9”H |
| Protection | Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting | Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting | Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting | Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting |
| Technology | Advanced NanoPhosphate® lithium-ion cell chemistry | Advanced NanoPhosphate® lithium-ion cell chemistry | Advanced NanoPhosphate® lithium-ion cell chemistry | Advanced NanoPhosphate® lithium-ion cell chemistry |
| Energy Density | 63.2 Wh/kg (73.0 Wh/liter) | 62.9 Wh/kg (78.9 Wh/liter) | 66.3 Wh/kg (83.1 Wh/liter) | 66.0 Wh/kg (77.4 Wh/liter) |
| Battery Life Expectancy | 8 years (average) | 8 years (average) | 8 years (average) | 8 years (average) |
| Communication | Built-in Test (BIT) Indicator ARINC 429, Analog, Discrete, RTD | Built-in Test (BIT) Indicator ARINC 429, Analog, Discrete, RTD | Built-in Test (BIT) Indicator ARINC 429, Analog, Discrete, RTD | Built-in Test (BIT) Indicator ARINC 429, Analog, Discrete, RTD |
| Maintenance | On-Condition: Service indicated via Discrete output, LED indication and ARINC 429 | On-Condition: Service indicated via Discrete output, LED indication and ARINC 429 | On-Condition: Service indicated via Discrete output, LED indication and ARINC 429 | On-Condition: Service indicated via Discrete output, LED indication and ARINC 429 |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) | -40°C to +70°C (-40°F to +158°F) | -40°C to +70°C (-40°F to +158°F) | -40°C to +70°C (-40°F to +158°F) |
| Configuration | 16P8S 4 parallel x 8 in series x 4 | 12P8S 4 parallel x 8 in series x 3 | 21P8S 7 parallel x 8 in series x 3 | 24P8S 4 parallel x 8 in series x 6 |
| Case | Anodized aluminum, blue | Anodized aluminum, blue | Anodized aluminum, blue | Anodized aluminum, blue |
| Connection | MS3509 Quick Disconnect, Mil Circular for communications | MS3509 Quick Disconnect, Mil Circular for communications | MS3509 Quick Disconnect, Mil Circular for communications | MS3509 Quick Disconnect, Mil Circular for communications |
| Certification | FAA TSO-C179b (Class A-4B) RTCA DO-311A RTCA DO-160G RTCA DO-178C DAL A UNDOT/IATA | FAA TSO-C179b (Class A-4B) RTCA DO-311A RTCA DO-160G RTCA DO-178C DAL A UNDOT/IATA | FAA TSO-C179b (Class A-4B) RTCA DO-311A RTCA DO-160G RTCA DO-178C DAL A UNDOT/IATA | FAA TSO-C179b (Class A-4B) RTCA DO-311A RTCA DO-160G RTCA DO-178C DAL A UNDOT/IATA |
| Warranty | Two-year (limited) | Two-year (limited) | Two-year (limited) | Two-year (limited) |
