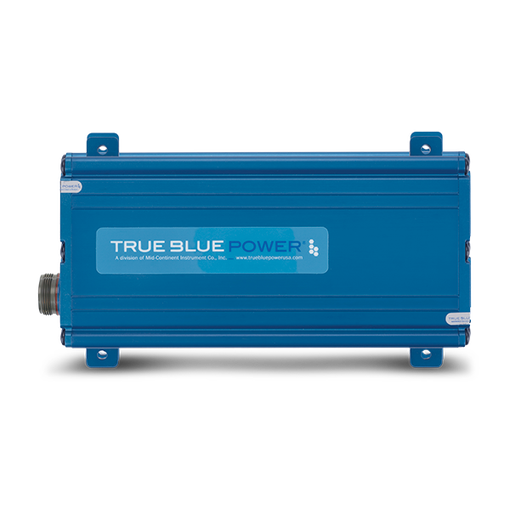

?? 6430060-1 Emergency Battery Power Supply ??
Part Number: 6430060-1
Model Number: TS60
Manufacturer: Mid-Continent Instruments and Avionics
Technical Description: 6.6 VDC Nominal, 32W, Lithium-ion
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Product Description
The TS60 Series Emergency Battery Power Supply provides constant 6.6 VDC power for emergency lighting systems in the event of aircraft electrical system failure. The unit maintains full charge by recharging during normal flight operations, and recharges 4x times faster than competing units. Advanced NanoPhosphate® lithium-ion technology provides consistent, reliable, and efficient power.
Benefits
- Provides constant 6.6 VDC power for emergency lighting systems in the event of electrical system failure
- Utilizes advanced Nanophosphate® lithium-ion cell chemistry
- Maintains full charge by recharging during normal flight operations
- Recharges 4x faster than competing units
- 2 year maintenance schedule
- 8 year (average) life expectancy
- Designed and built in Wichita, Kansas USA
- Two-year limited warranty
Specifications
Capacity
46 amp-hour nominal at 23°C/73.4°F
Charge Voltage
28 VDC nominal
Output Voltage
26.4 VDC nominal
Output Current
750 A continuous, 1500 A max
Technology
Advanced NanoPhosphate® lithium-ion cell chemistry
Protection
Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature
Energy Density
52.0 Wh/kg (64.6 Wh/liter)
Operating Temperature
-40°C to +70°C (-40°F to +158°F)
Weight
51.7 lbs. (23.4 kg)
Dimensions
10.9”L x 11.7”W x 10.1”H
Configuration
8S19P; 8 series cells x 19 parallel modules
Maintenance
2-year maintenance interval; offers 50 – 90% savings on maintenance costs
Battery Life Expectancy
8 years (average)
Case
Powder-coated steel, blue
Certification
FAA TSO certified to C179a
ETSO certified to C179a
RTCA DO-311 qualified
RTCA DO-160G qualified
UNDOT/IATA qualifiedSpecifications
Capacity
28 Watt-hour
Input Voltage
17 – 32 VDC
Output Power
6.6 VDC nominal, 4 amps max
Weight
3.8 lbs (1.72 kg)
Dimensions
8.75″L x 5.35″W x 2.60″H
(222.25mm x 135.89mm x 66.04mm)
Battery Life Expectancy
8 years (average)
Protection
Overcharge, over-discharge, over-current, short circuit, and temperature monitoring
Direct Replacement
Honeywell Grimes 60-3844-( )
Mating Connector
9019011-1
Case
Anodized aluminum, extrusion, blue
Certification
FAA TSO C179b certified Class A-3A
RTCA-DO 311A qualified
RTCA-DO 160G qualified
TS60 Supplemental Type Certificates (STCs)
Select your aircraft manufacturer from the dropdown menu to view a list of applicable TS60 Emergency Battery Power Supply STCs.
| STC Number | Aircraft Model |
| ST01086DE |
|
| STC Number | Aircraft Model |
| ST04409NY |
|
| STC Number | Aircraft Model |
| ST01086DE |
|
| STC Number | Aircraft Model |
| ST01086DE |
|
