ACM-1260-101 Battery Tester / Charger
$5,999.00
Part Number: ACM-1260-101
Model Number: TT28-12
Manufacturer: Lamar Technologies
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Product Description
Charge, discharge and evaluate lithium-ion and lead-acid aircraft batteries with the easy-to-use TT28-12 True Blue Charger PRO. The TT28-12 is the ONLY battery charger that automatically discharges lithium-ion aircraft batteries to 30% state-of-charge, as required for air shipment. This battery charger is pre-loaded with all charge and discharge parameters for True Blue Power lithium-ion batteries, allowing maintenance personnel to safely and efficiently top charge batteries and perform scheduled capacity checks.
Benefits
- Charge, discharge and test lead-acid and True Blue Power lithium-ion aircraft batteries:
TB17 (17 amp-hour) TB40 (40 amp-hour) TB20 (20 amp-hour) TB44 (46 amp-hour) TB28-12V (26 amp-hour) TB60 (60 amp-hour) TB30 (30 amp-hour) TS835* (4.5 amp-hour) - Variable Power: 12.5 amps charge (nominal); 60 amps discharge (maximum)

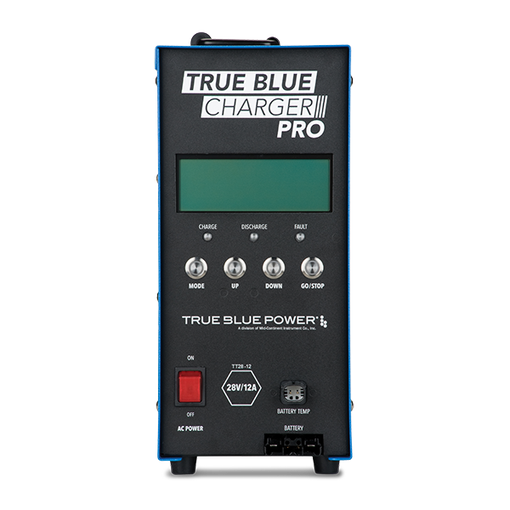

- Alphanumeric LCD display provides battery mode, current, voltage, temperature and timer
- Charge, Discharge and Fault LED indicators
- One-year limited warranty
Specifications
Input Voltage
90 – 132 VAC or 180 – 264 VAC (switch selected)
47 – 63 Hz
Input Power
8.4A at 115 VAC
4.35A at 230 VAC
15A Circuit Breaker
Battery Charge Voltage
Lithium-ion 14.4/28.8V (maximum)
Lead-acid 14.4/28.8V (maximum)
Operating Temperature
0°C to +55°C (32°F to 131°F)
Storage Temperature
-40°C to +80°C (-40°F to +176°F)
Display Measurement
Up to 0.1V, 0.1A
Display Accuracy
±0.2V, ±0.2A
Weight
29.5 lbs (13.4 kg)
Dimensions
6.5”W x 14.5”H x 15”D
Battery Connectors
Compatible with MS-3509, 5/16” ring terminals, alligator clamps and temperature cables
Protection and Monitoring
Overcharge, over-temperature and time out for failed batteries, auto shut off after top charge is complete and audible alerts for low voltage and reverse polarity
