AV-30C (Certified)
Original price was: $2,499.00.$2,249.00Current price is: $2,249.00.
Upgrade your legacy vacuum-driven instruments to digital precision attitude and directional gyro customizable displays.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Upgrade your legacy vacuum-driven instruments to digital precision attitude and directional gyro customizable displays.
- Primary Attitude
- Primary Slip
- Primary Direction Indication
- Probeless Angle Of Attack
- Indicated Airspeed (KTS/MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter
- OAT / TAS / Density Altitude
- Bus Voltage
- GPS Navigational Data Overlay
- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, & Layout
- Audio Alerts (AoA, G, Roll Limits)
- 2 Hr Typical Internal Battery Operation
Expanding the Connected Cockpit
echoESX complements the uAvionix ecosystem, integrating seamlessly with AV-20-E, AV-30 (E/C), AV-HSI, AV-APA, AV-Link, and the ForeFlight Sentry ADS-B IN products. This ensures enhanced interoperability, providing pilots with intuitive control, enhanced situational awareness, and reduced complexity during cockpit retrofits.
Replace heavy transponders and blind encoders with a sleek, modern unit, reducing avionics weight for improved efficiency and performance. Remove weight from your panel with uAvionix and remember – every 6 pounds saved from your panel = 1 gallon of gas!

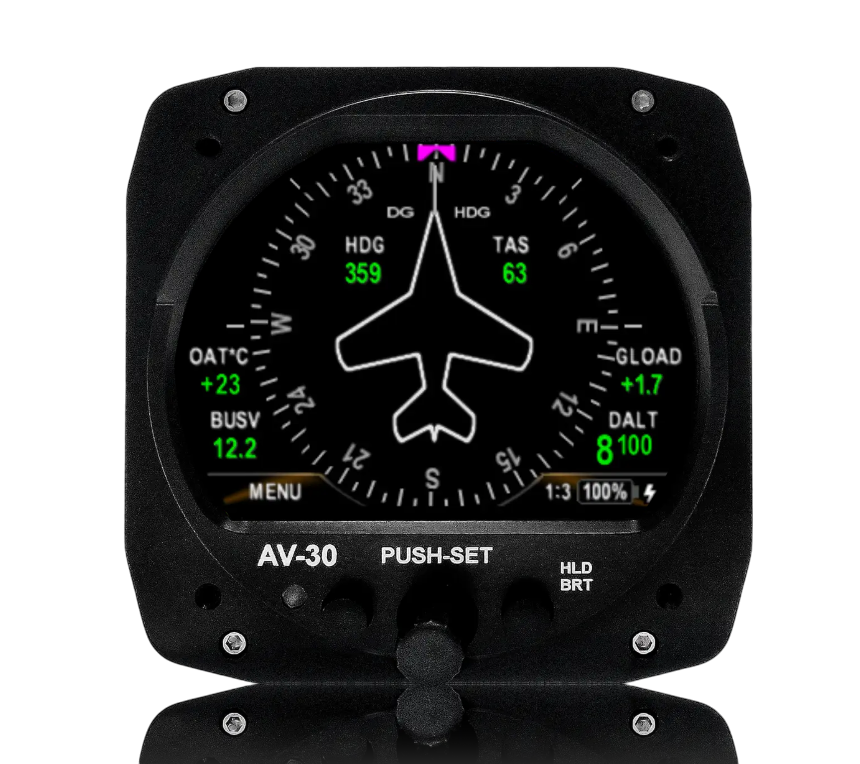

Customizable Display
- Primary Attitude
- Primary Slip
- Primary Direction Indication
- Probeless Angle Of Attack
- Indicated Airspeed (KTS/MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter
- OAT / TAS / Density Altitude
- Bus Voltage
- GPS Navigational Data Overlay

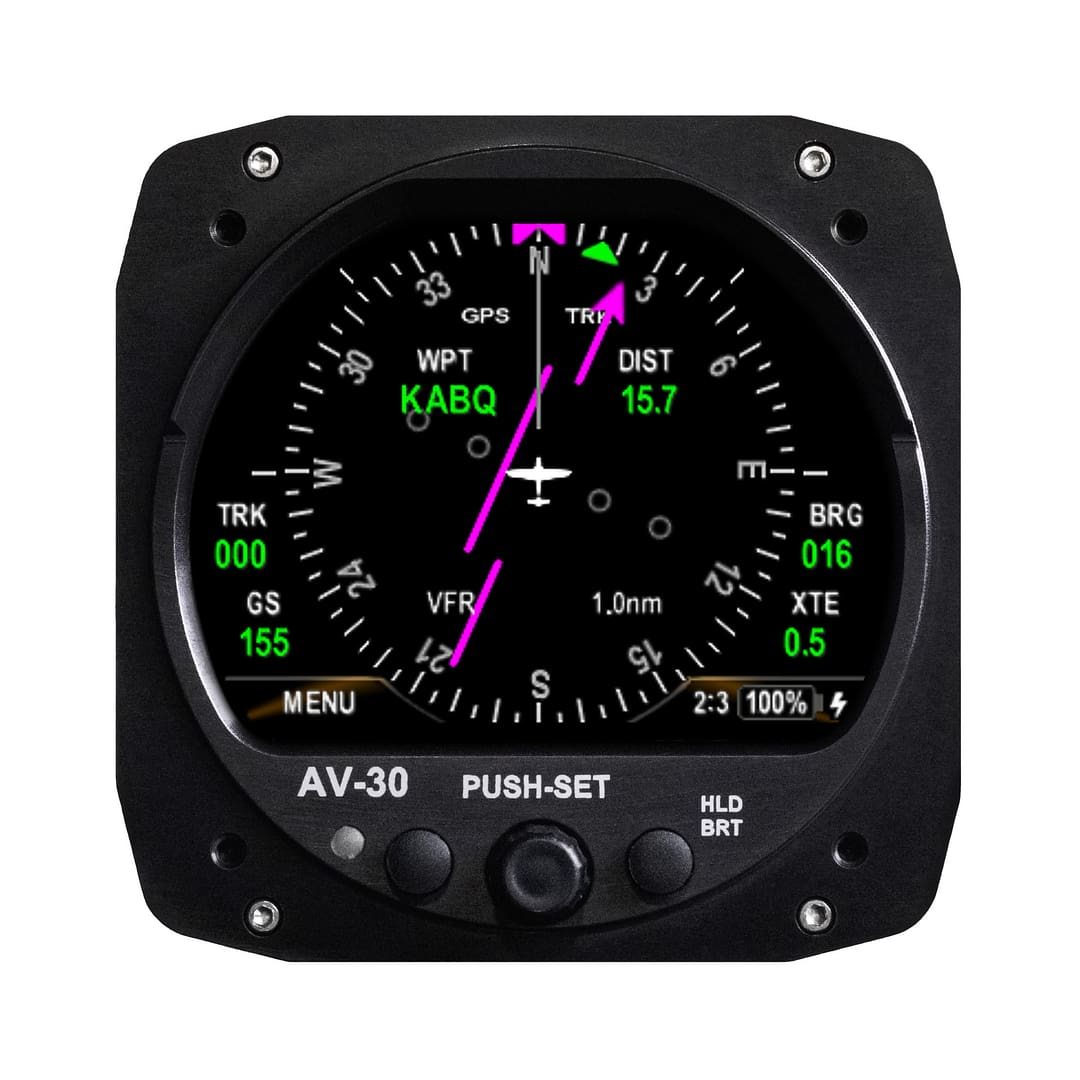

- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, & Layout
- Audio Alerts (AoA, G, Roll Limits)
- 2 Hr Typical Internal Battery Operation
Transponder Control

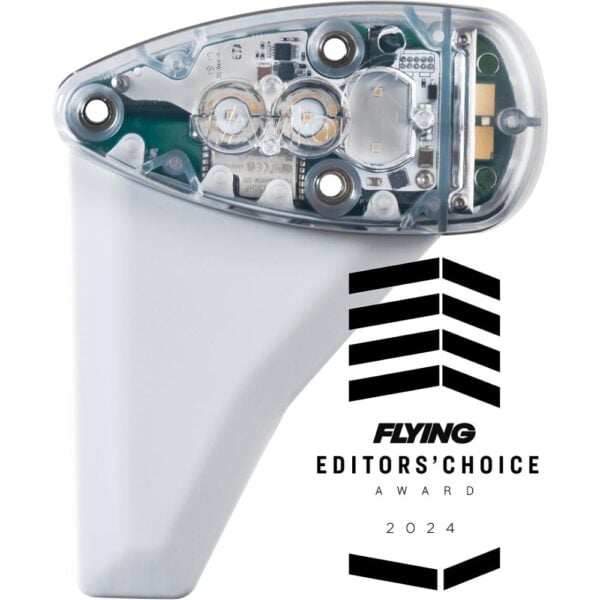

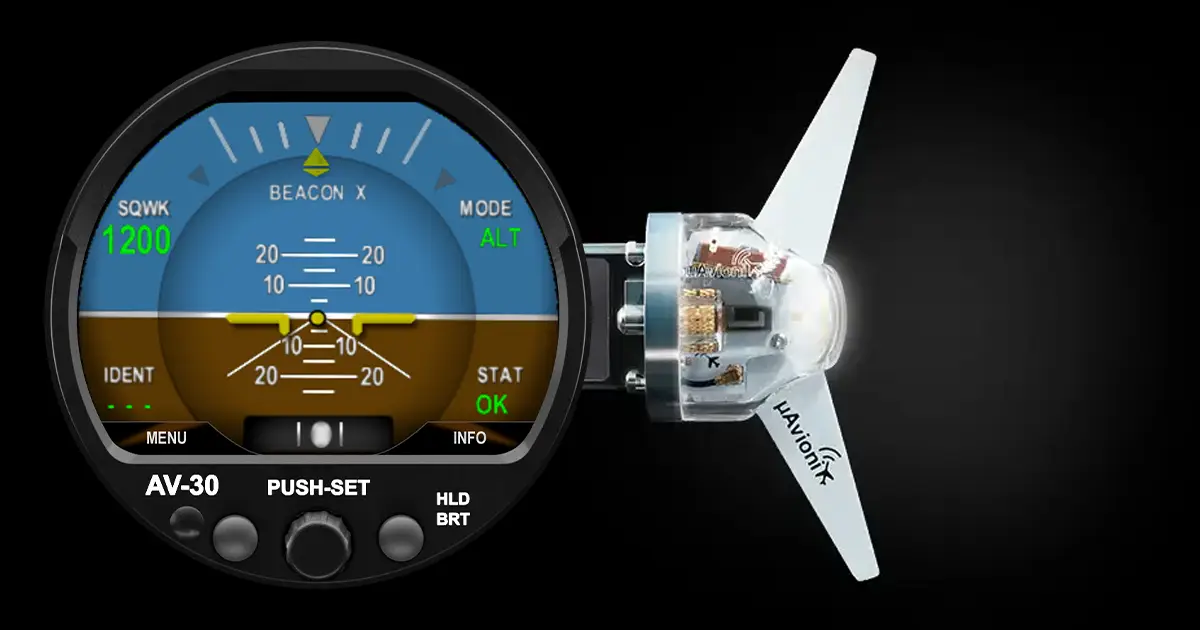

Travel beyond borders with tailBeaconX, the globally accepted, Aireon enabled, 1090/ES ADS-B Transponder. AV-30 paired with tailBeaconX allows you to easily set your mode and squawk while enabling additional functionality to AV-30.
Avoid Stalls

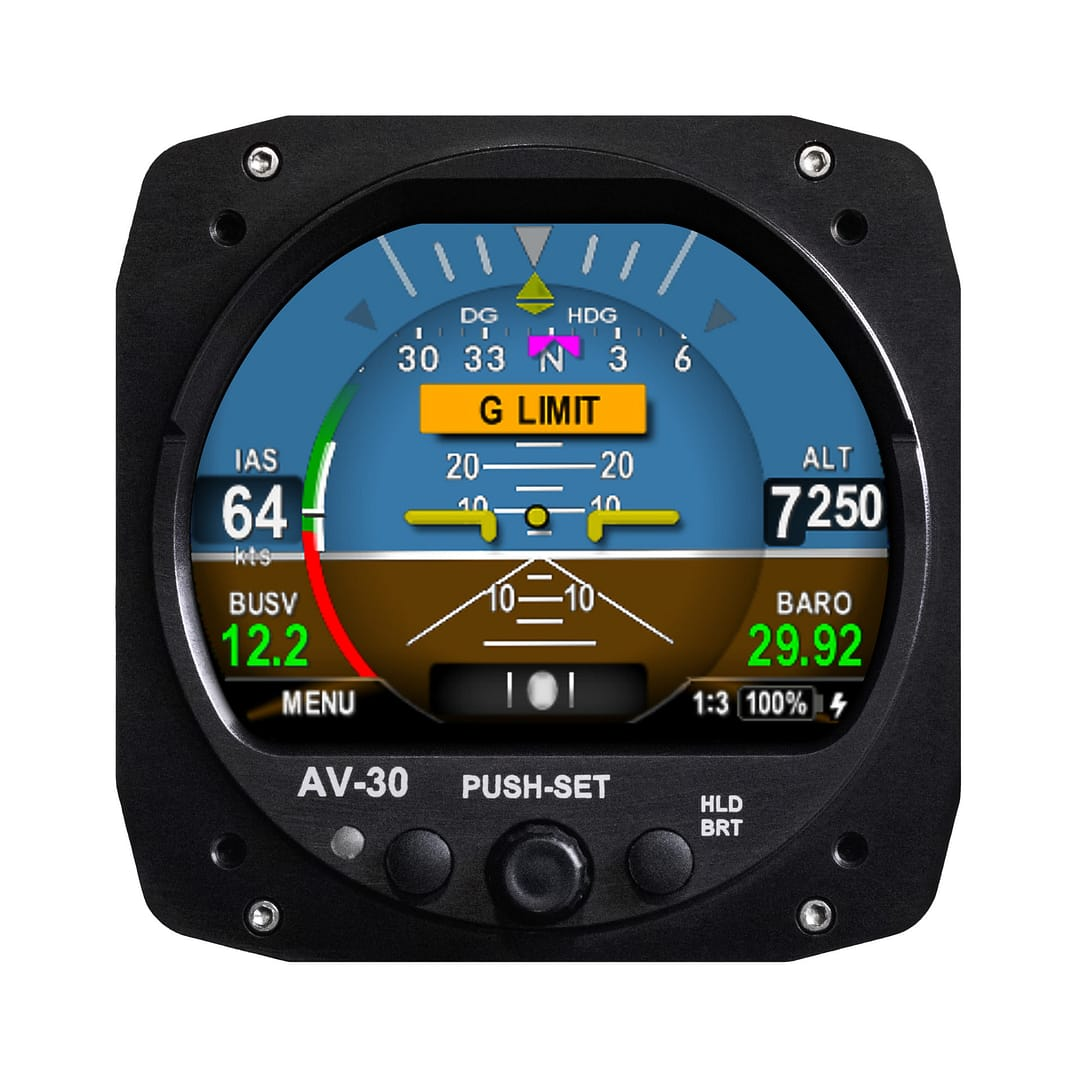

The AV-30 alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.
Live Traffic on AV-30
Plug-in AV-Link to your AV-30 serial port, connect the AV-Link to your ADS-B receiver via Wi-Fi, and that’s it.
Tech Specs
Specification | Value |
|---|---|
| Input Voltage Nominal | +10 to +32 VDC |
| Input Voltage Max | +60 VDC |
| Input Power Nominal | 6 Watts (0.5 Amps @ 12VDC) |
| Input Power Max | 12 Watts (1.0 Amps @ 12VDC) |
| Required Circuit Breaker | 2 Amp |
| Operation on Battery | 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C |

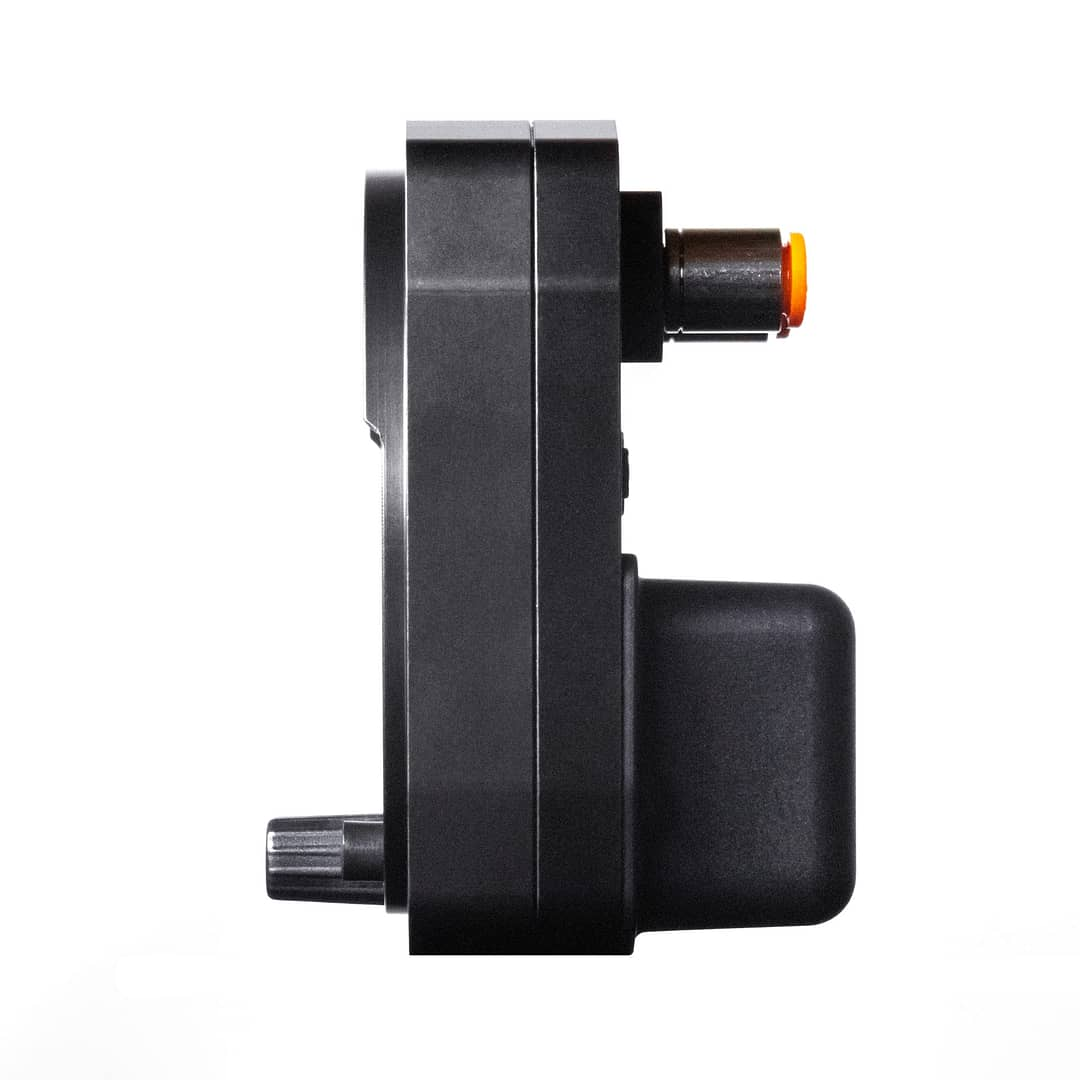

| Physical Attributes | |
| Mounting Configuration | 3 1/8” Round Instrument Hole |
| Dimensions wo/Connector | 3.38 x 3.38 x 1.6 Inches |
| Weight | 0.50 Lbs. |

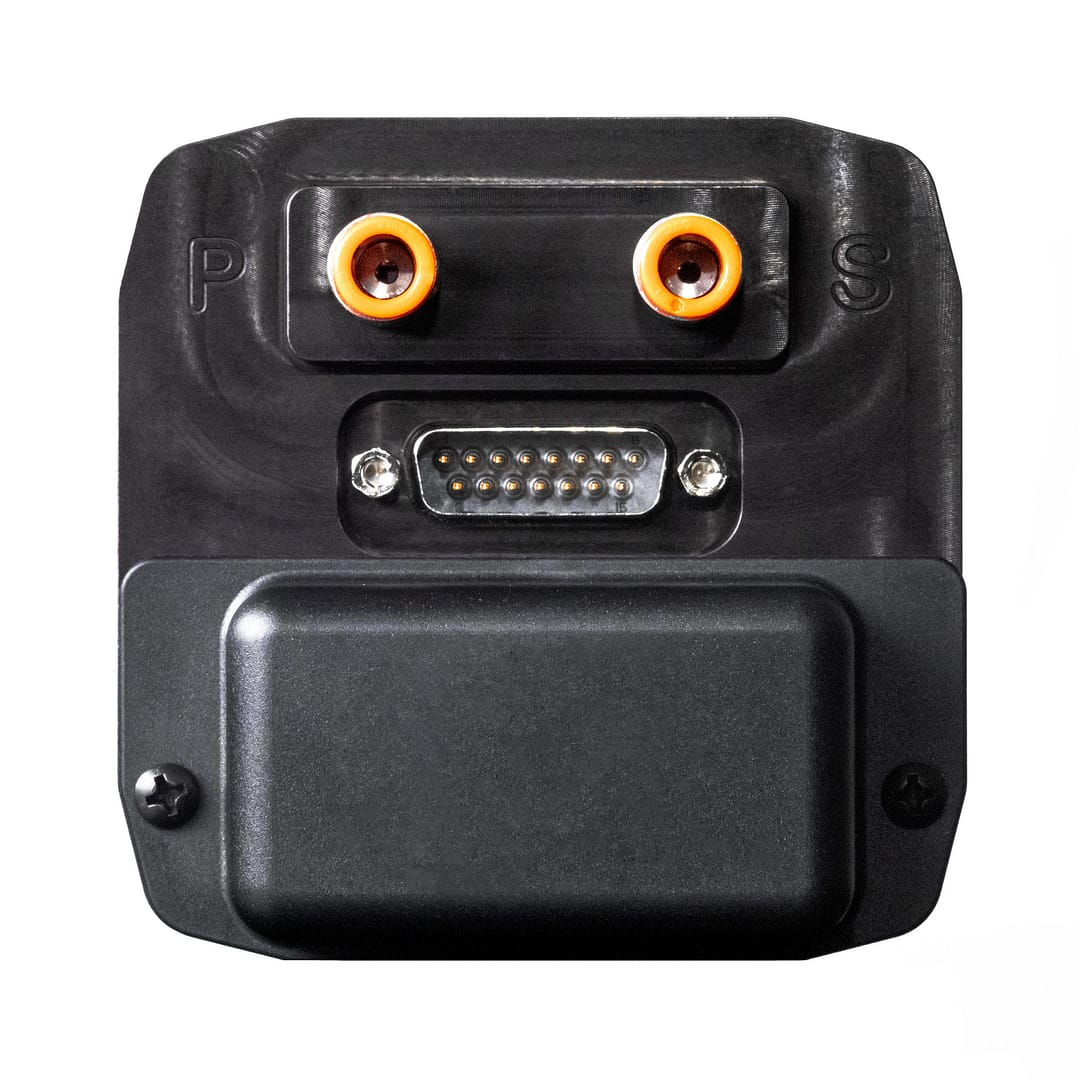

| Electrical Connector | 15 Pin Male D-Sub |
| Pneumatic Connectors | ¼” OD Quick Connect |
| Mounting | (4X) #6-32 Machine Screws |
| Case Material | Billet Aluminum |
| Environmental | |
| Operating Temp | -20°C to +55°C |
| Storage Temp (48 Hrs) | -30°C to +80°C |
| Humidity (48 Hrs) | 90% RH |
| Display | |
| Diagonal Size | 3” Circular |
| Contrast Ratio (Typical) | 500 |
| Brightness (Typical) | 1000 cd/m2 |
| Viewing Angle Left/Right | 60° |
| Viewing Angle Up | 45° |
| Viewing Angle Down | 10° |
| Backlight Lifetime (Typical) | 50,000 Hrs |
| Warranty | |
| STC PMA (Certified) | 2 years |
| Experimental | 1 year |
Documentation
AV-30-C STC Documentation
Documentation & Downloads
| Document | Revision | Release Date |
|---|---|---|
| STC SA00410BO Certificate [PDF] | 04/26/2024 | |
| AV-30-C Approved Model List [PDF] | Rev D | 08/01/2022 |
| Install Manual [PDF] | Rev O | 08/13/2024 |
| Pilot Guide [PDF] | Rev H | 05/17/2024 |
| AV-30-C Flight Manual Supplement [PDF] | Rev D | 05/17/2024 |
| Continued Airworthiness Manual [PDF] | Rev D | 05/17/2024 |
| AV-30-C Permission to Use STC [PDF] | Rev A | 08/31/2020 |
| AV-30-C Master Drawing List [PDF] | Rev Y | 08/13/2024 |
| AV-30-C EASA SUPPLEMENTAL TYPE CERTIFICATE [PDF] | Rev 1 | 07/07/2021 |
| AV-30-C Permission to Use EASA STC [PDF] | Rev A | 03/17/2021 |
| AV-30-C TCCA Additional STC AML [PDF] | Rev A | 09/29/2021 |
| Convalidación IA-1003-2025 del STC SA00410BO uAvionix Corporation [PDF] | Rev A | 01/10/2025 |
| AV-30-C Permission to Use TCCA STC [PDF] | Rev A | 09/29/2021 |
| AV-30-C UK STC Approval Certificate [PDF] | Rev A | 05/20/2021 |
| AV-30-C Permission to Use UK STC [PDF] | Rev A | 05/20/2021 |
| AV-30-C BRAZIL STC Approval Certificate [PDF] | Rev A | 01/27/2022 |
| AV-30-C Permission to Use BRAZIL STC [PDF] | Rev A | 01/27/2022 |
| AV-30-C Windows Simulator [.exe] | 2.5.0 | 05/17/2024 |
AV-30-E Documentation
Documentation & Downloads
| Document | Revision | Release Date |
|---|---|---|
| Install Manual [PDF] | Rev K | 01/25/2025 |
| Pilot Guide [PDF] | Rev L | 01/25/2025 |
| AV-Link Quick Start Guide [PDF] | Rev C | 07/15/2024 |
| AV-30 Quick Reference Guide [PDF] | Rev F | 07/15/2024 |
| AV-30-E Windows Simulator [.exe] | 3.0.1 | 01/25/2025 |
