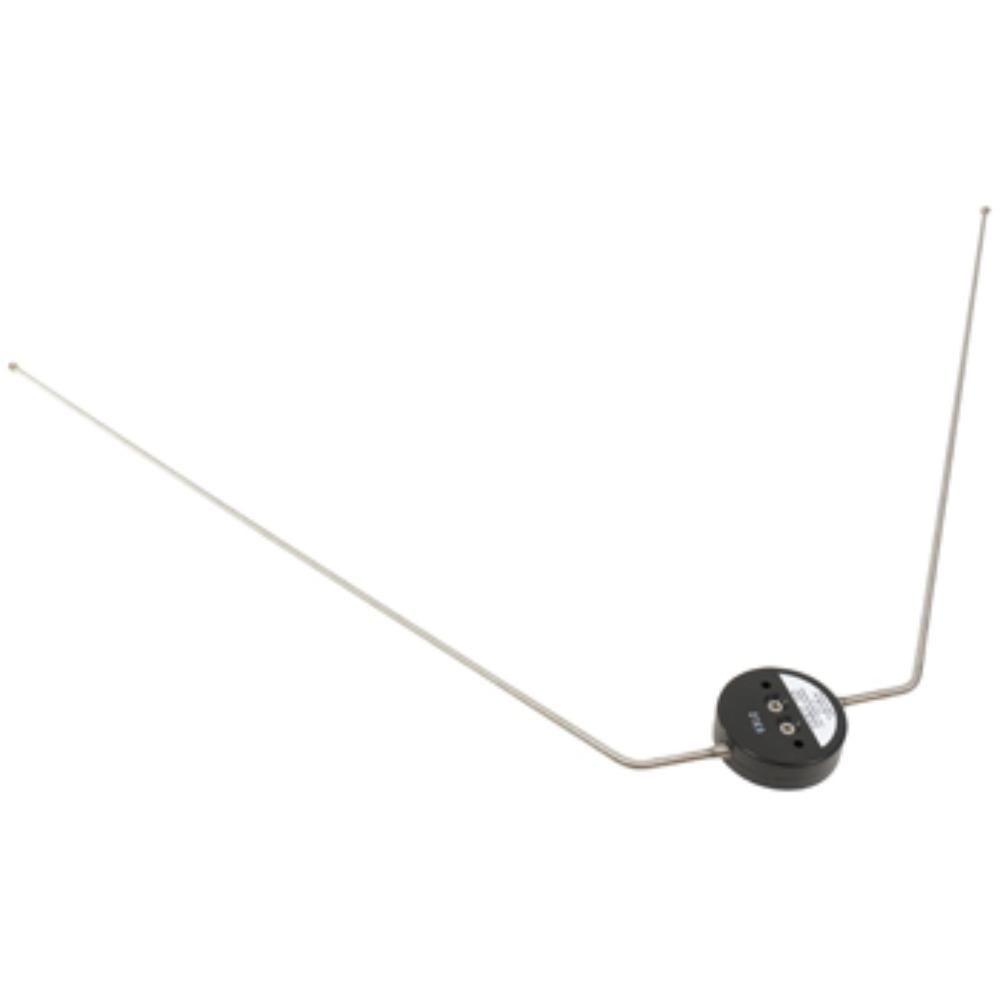

AV-532L VOR/LOC/GS Antenna | 108-118 MHz & 328-336 MHz
$295.00
The AV-532L is a VOR/LOC/GS (receive only) antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 ft transmission line with integral balun is also supplied.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The AV-532L is a VOR/LOC/GS (receive only) antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph. A 30 ft transmission line with integral balun is also supplied.
Features
- Utilizes an internal balun transformer
- Horizontal polarization
- 108-118 MHz (VOR/LOC) & 329-335 MHz (GS) frequency ranges
Specifications
Max. Weight:
11 oz. (14 oz. with cable)
Application:
VOR/LOC/GS Receive Only
Frequency:
108-118 MHz
328-336 MHz
Impedance:
50 Ohms Nominal
VSWR:
2.0:1 Maximum
Polarization:
Horizontal
Pattern:
Omnidirectional
Connector:
Threaded studs to accept transmission line assembly with integral balun transformer (included)
RF Power Capacity:
Receive Only
FAA Approval:
TSO-C40c
