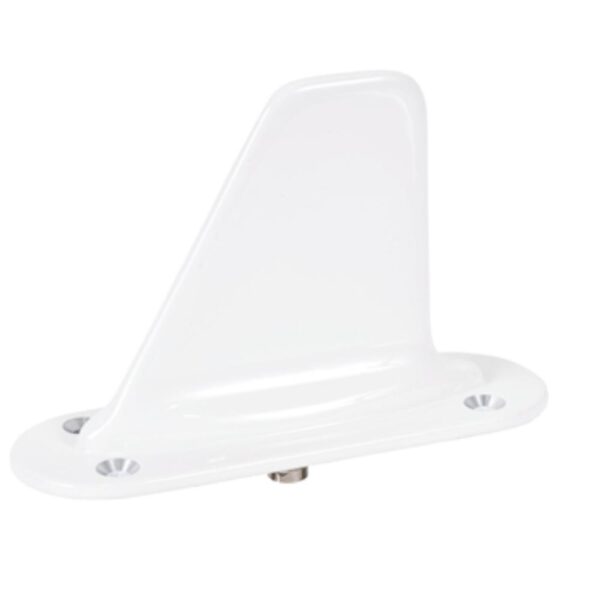

CI 105-16 DME Transponder Antenna | 960-1220 MHz
$287.96
The CI 105-16 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has an extended two stud mounting configuration. Tested to the tougher DO-160D environmental requirements, it offers the best in ruggedness and performance.
This antenna (CI-105-16) was designed specifically to replace the Honeywell Bendix-King KA60. It includes a BNC connector, covers 960 – 1220 MHz frequencies and is rated to 400 Knots TAS at 25,000 ft.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The CI 105-16 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has an extended two stud mounting configuration. Tested to the tougher DO-160D environmental requirements, it offers the best in ruggedness and performance.
This antenna (CI-105-16) was designed specifically to replace the Honeywell Bendix-King KA60. It includes a BNC connector, covers 960 - 1220 MHz frequencies and is rated to 400 Knots TAS at 25,000 ft.
Features
- Encased in a glass reinforced polyester molded shell
- Extended two stud mounting configuration
- Includes a BNC connector
Specifications
Weight:
0.2 lb
Height:
3.23 in
Finish:
polyurethane enamel
Connector:
BNC (female)
Frequency:Â
960 MHz to 1220 MHz
VSWR:Â
1.5:1 @ 960-1220 MHz, maximum
1.3:1 @ 1025-1150 MHz, maximum
Polarization:
Vertical
Radiation pattern:
equivalent to a 1/4 wave stubÂ
Impedance:
50Ω
Resistance DC:
open circuit
Power RF:
2.5 KW Peak
Temperature:
-55°C to 85°C
Altitude:Â
70,000 ft
Airspeed:
400 Knots TAS at 25,000 ft
Product Codes
Mfr Part No : CI 105-16
ECCN : 7A994
PROAPP : PT2316NM
SCHEDULE B CODE : 8529.10.4000
TSO : C66c,C74c
