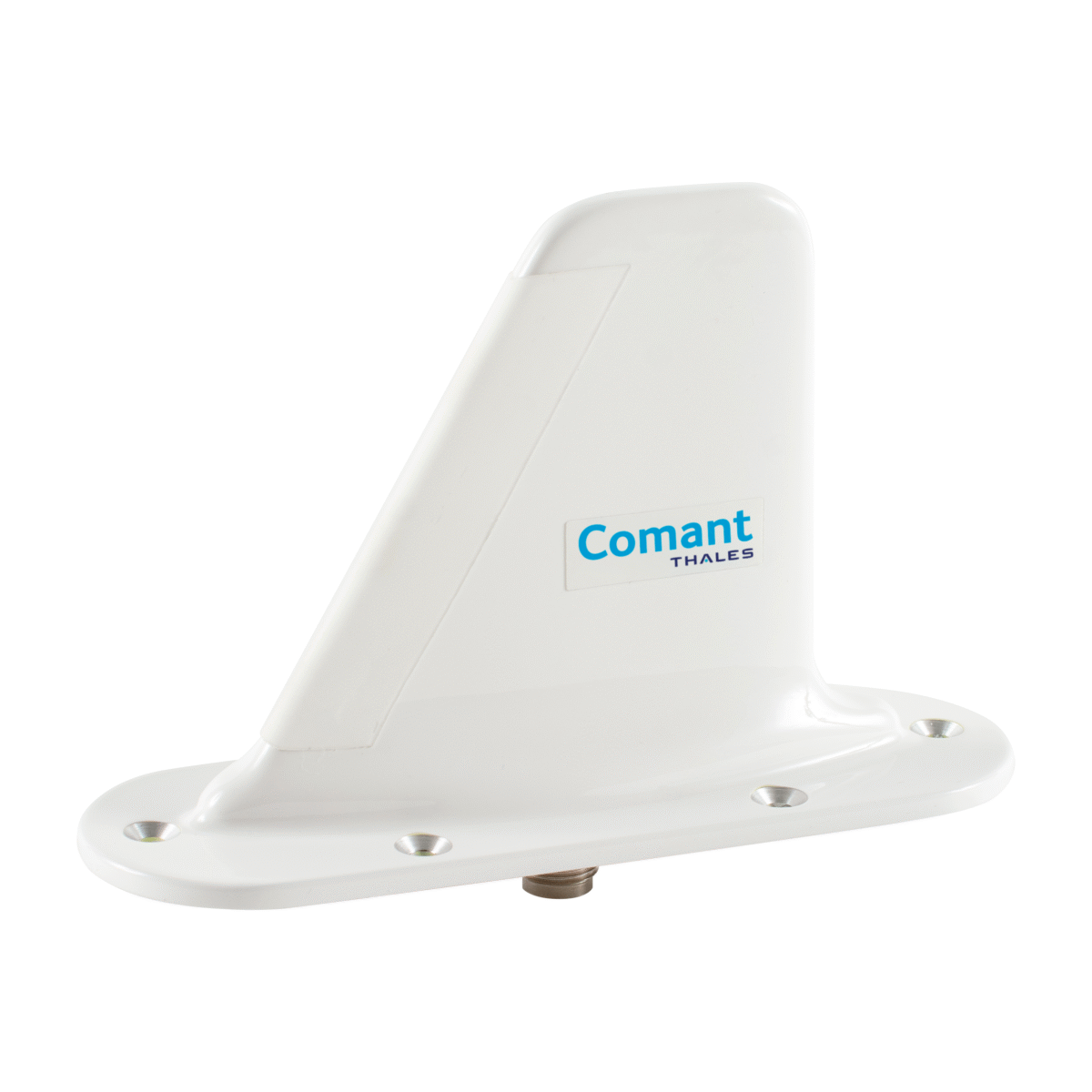

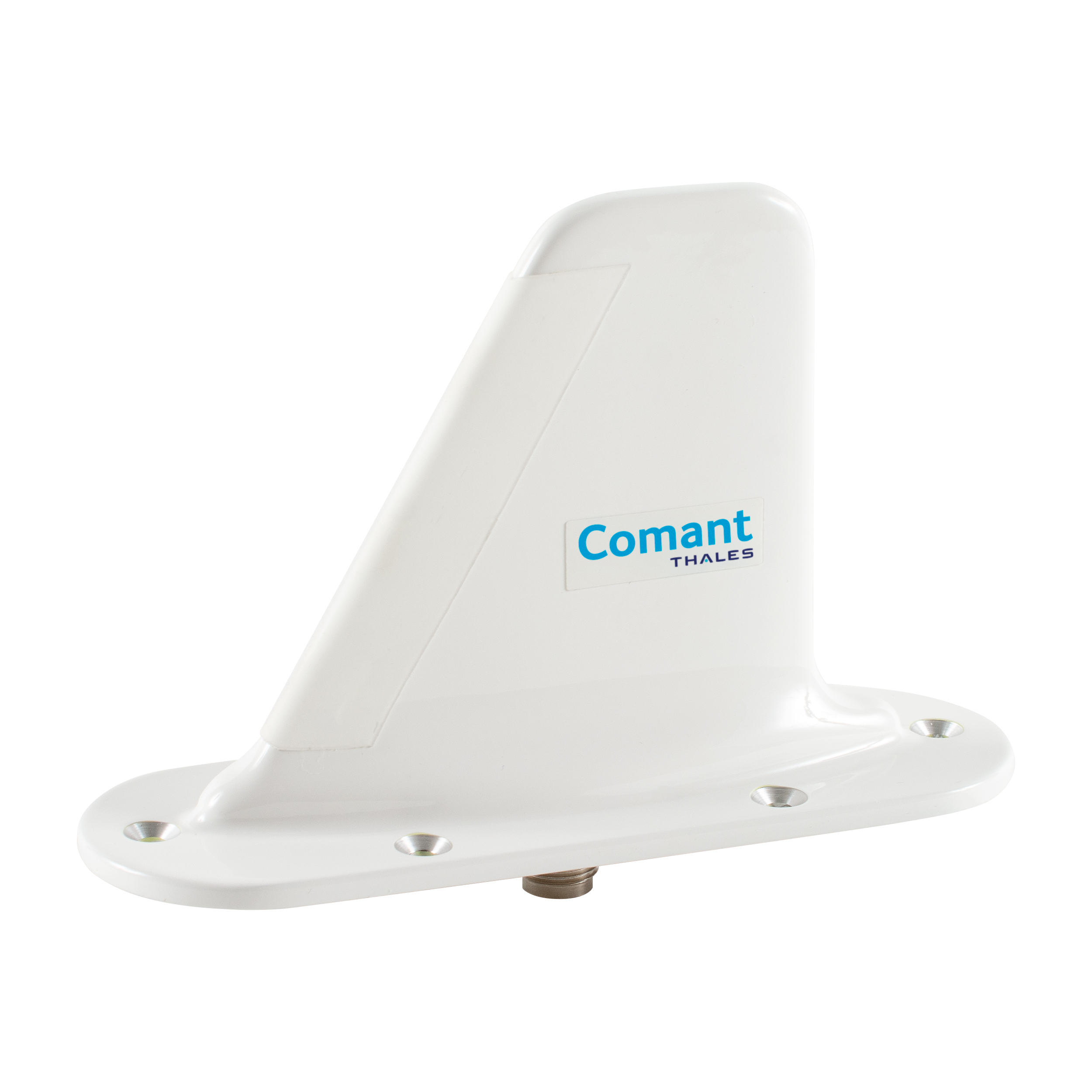

CI 105-17-L ADS-B/UAT Antenna | TNC
$795.80
Comant’s CI 105-17-L is a top of the line ADS-B performance antenna capable of both IN and OUT processing. The single connector blade antenna can be used for ADS-B, TIS-B, UAT, DME or ATCRBS Transponder, plus Mode S.
The CI 105-17-L holds 5 different TSO’s all in the familiar transponder antenna footprint and tiny blade size. Perfect for diversity antenna installations to ensure unsurpassed coverage. Utilizes a standard 6-hole mounting pattern.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Comant's CI 105-17-L is a top of the line ADS-B performance antenna capable of both IN and OUT processing. The single connector blade antenna can be used for ADS-B, TIS-B, UAT, DME or ATCRBS Transponder, plus Mode S.
The CI 105-17-L holds 5 different TSO’s all in the familiar transponder antenna footprint and tiny blade size. Perfect for diversity antenna installations to ensure unsurpassed coverage. Utilizes a standard 6-hole mounting pattern.
Features
- Includes a TNC connector
- Holds 5 different TSO’s
- Specially for receiving ADS-B In benefits like traffic, weather, etc.Â
- Covers ADS-B In/Out across 1090 ES and 978, DME, and backwards compatible with Mode SÂ
- 6 hole mounting pattern for robustness; great for helicopter installations
Specifications
Weight:
0.3 lb
Finish:
Polyurethane White Paint
Connector:
TNC (female)
Frequency:Â Â
960 MHz – 1220 MHz
1030 MHz – 1090 MHz
978 MHz
1090 ±1 MHz
VSWR (maximum):Â
2.0:1
1.5:1
1.7:1
1.5:1
Return Loss (maximum):
9.54 dB
-13.98 dB
-11.73 dB
-13.98 dB
Polarization:
Vertical
Radiation Pattern:
Omni-directionalÂ
Impedance:
50Ω
Power RF:
1 KW, peak
Certifications:
TSO-C66c, 960-1215 MHz
TSO-C74d, Class A, 1030-1090 MHz
TSO-C112e, 1030-1090 MHz
TSO-C154c, Class A3, 978 MHz
TSO-C166b, Class A, B, 1090 ± 1 MHz
RTCA/DO-160G, ENV. CAT.:
[F2X]A CE[R(C,C1)H(R)U2(F,F1)S(L)]XSFSXSXXXX[XXX][XX]X[XXXXXX][XX]AXX
Product Codes
Mfr Part No : CI-105-17-L
ECCN : 7A994
PROAPP : PT2316NM
SCHEDULE B CODE : 8529.10.4000
TSO : C66c, C74d, C112e, C154c, C166b
