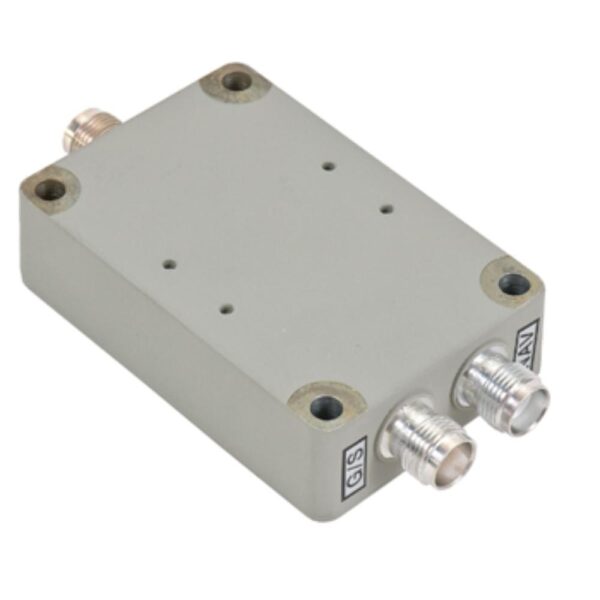

CI 1120-300 SAR Triplexer / 136 – 174 MHz / 380 – 520 MHz / 764 – 870 MHz
$1,132.50
The CI 1120-300 triplexer (CI-1120300) is specifically designed to operate with the CI 295-300 single connector search and rescue antenna. It provides frequency coverage over 136 – 174 MHz, 380 – 520 MHz, & 764 – 870 MHz from one antenna with a single port.
The CI 1120-300 has been tested extreme MIL-STD-810D environments including helicopter vibration and high temperature environment above 125°C. This device uses surface mount components for reliable tuning over temperature.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The CI 1120-300 triplexer (CI-1120300) is specifically designed to operate with the CI 295-300 single connector search and rescue antenna. It provides frequency coverage over 136 - 174 MHz, 380 - 520 MHz, & 764 - 870 MHz from one antenna with a single port.
The CI 1120-300 has been tested extreme MIL-STD-810D environments including helicopter vibration and high temperature environment above 125°C. This device uses surface mount components for reliable tuning over temperature.Â
Features
- Compatible with CI 295-300 SAR antenna
- 136 - 174 MHz, 380 - 520 MHz, & 764 - 870 MHz frequencies
Specifications
Weight:
0.6 lb, maximum
Frequency Range:
136 - 174 MHz
380 - 520 MHz
760 - 870 MHz
VSWR:
1.5:1, maximum
Isolation:
30 dB, minimum
Insertion Loss:
1.0 dB, maximum
Impedance:
50Ω, nominal
RF Power:
10 watt
Product Codes
Mfr Part No : CI-1120-300
