EDM 350
Price range: $1,200.00 through $1,650.00
Before Ordering Please Note: The EDM350 is for Experimental Aircraft Only
Compact size, full customization features, with legendary JPI quality and accuracy. The Engine Data Management 350 system is the most cost effective, reliable piston engine experimental EDM instrument on the market.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
EDM-350
The flexible EDM-350 offers a small, but powerful EDM for your panel. Customize your display & add fuel flow and a long list of features
Full House
Mid Way 1
Basic

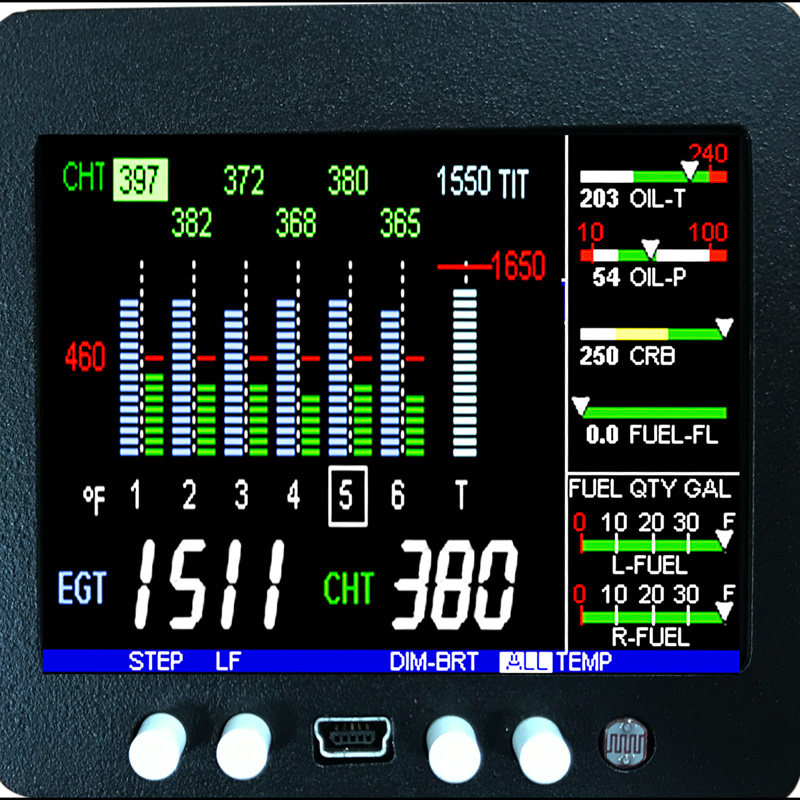

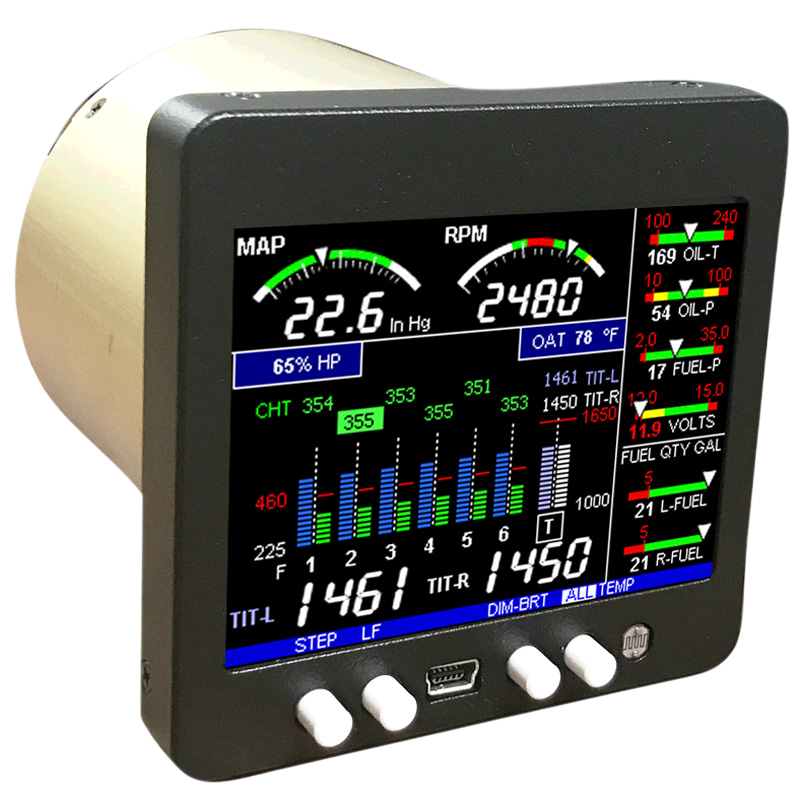

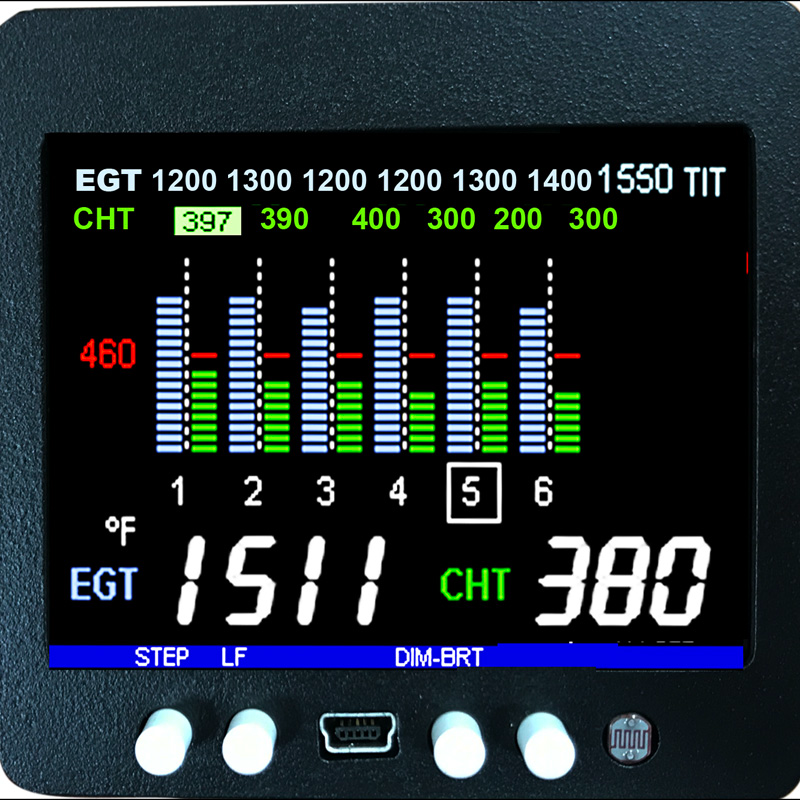

The compact Engine Data Management 350 system (3.5″ square) is a very advanced and accurate piston experimental engine-monitoring instrument. You can order the basic model with options, or go with the Full featured model with the P5 connector (additional $200.) that also includes Amps, Fuel Pressure & Fuel Quantity as options. The EDM 350 is not just another black box along for the ride. It is a Flight Engineer, Maintenance Manager, and Backup Instrument, whose compact size can easily fit in your panel.

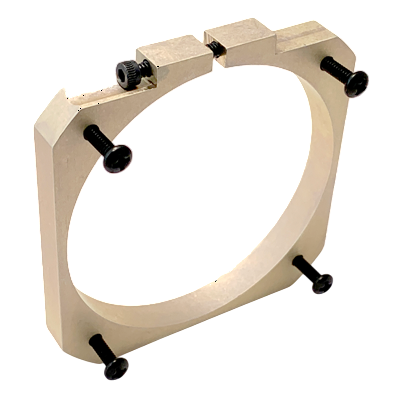

Mounting Clamp Behind Panel, Included
With the EDM 350, it is now possible to have substantially more diagnostic
information available to you in a timely and usable manner.
- Improved engine efficiency
- Reduced maintenance costs
- Greater fuel economy
- Reduced operating costs
- Smoother engine operation
- Proper engine temperatures
- Longer spark plug life
- Reduced engine vibration
Price option breakdown:
Basic Model EDM-350-4C 4 cyl EGT/CHT only
+$1,200.00
Basic Model EDM-350-6C 6 cyl EGT/CHT only
+$1,450.00
Options (Plug & Play)
RPM $299
MAP $299
OIL-P $299
OIL-T $195
OAT $195
FUEL-P $320 STD
FUEL-P $495 TURBO
TIT ea $195
CRB $195
Fuel Flow $490
FF Press Carb $595
CDT $195
Volts-2 $95
Remote Alarm Light $92
Options requiring “Full” EDM-350 w/P5 connector- is an additional $200
AMPS
FUEL-P $320 STD
FUEL-P $495 TURBO
2 L/R Main $250
Frequency 2 L/R Main
Fuel Level $350
Specifications
EGT 4 or 6 probes
CHT 4 or 6 probes
Volts
Shock cooling
LOP/ROP JPI Exclusive Leaning Mode
Fuel Flow (USED, Remaining, GPH
Endurance, GPS destination)
MAP
Oil Temperature
Oil Pressure
OAT
%HP (Requires: OAT, RPM, MAP, & FF )
Power connector
All required Harness
EZTrends
Data recording-100 hrs. Download USB
1 GB memory stick
Selectable Positions for Linear gauges
3 year Warranty
Optional functions
CDT
IAT
CARB Temperature
TIT
