FL-2 Dual Fuel Level
$600.00
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description

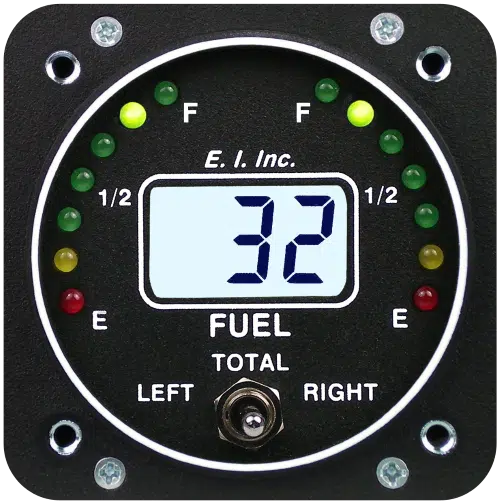

FL-2 Dual Fuel Level
Stable Digital Fuel Level for Single Tanks
- Two 90° graphical arcs for quick reference of the fuel levels.
Easy To Install & Versatile
- The FL-2 fits into one of your existing 2 1/4″ holes.
- Switch easily between Left, Right or Total Fuel
Accurate, Dependable & Easy To Use
- Electronics International consistently has been a leader in digital engine instrumentation since 1979.
FL-2 Overview
Overview
The FL-2 offers pilots digital fuel levels, with unprecedented accuracy, for dual fuel tanks. Not only does the FL-2 display each tank digitally, it also provides 90′ graphical arcs for immediate, quick reference of each tank’s level. The FL-2 can be ordered to work with resistive probes (FL-2R-12 or FL-2R-24, depending on 12 or 24 volts), capacitive probes (FL-2CA) or 0-5 volt output, (such as with some Skysports probes (FL-2V). Please be sure to specify which model you need when you order your FL-2.
The FL-2 is not STC’d for installation in a certified aircraft.
Features
Fuel Slosh Stabilization
When in flight, fuel will slosh around in the aircraft fuel tanks, creating irritating readings that constantly jump around. The FL-2 has a Fuel Slosh Stabilization calibration point that averages fuel level readings, creating a much more stable, but still extremely accurate fuel reading. Calibrate between a couple of seconds all the way up to over a minute of fuel slosh averaging.
9 Calibration Points
The FL-2 allows installers to program from as little as two all the way up to nine fuel level calibration points in the fuel tank. This flexibility eliminates inaccuracies due to non-linear fuel tanks.
Easy Programming Interface
The FL-2 is a simple instrument to install and program. Clear step-by-step instructions make programming the instrument easy to calibrate to your fuel tank senders.
Selectable Units
The pilot can easily select between displaying fuel level in Liters, Gallons or Lbs with a switch on the front of the instrument panel.
Retail Prices
Package includes:
- FL-2 Instrument
- Wire Harness
- Operating & Installation Instructions
| Description | Package | Retail Price |
| FL-2 Single Fuel Level Package | FL-2RA-12, FL-2RA-24, FL-2CA | $600 |
- FL-2RA-12 : 12-Volt System
- FL-2RA-24 : 24-Volt System
- FL-2CA: Capacitive Probes
Specifications
Dimensions
2.5” x 2.5” x 3.65” Deep, 2 1/4” Flush Mount
Weight
Instrument: 11 oz
Power Requirements
7.5 to 35 Volts
Typical: 0.1 amps @ 12 Volts
Intensity Control
Independent control lines allow pilots to adjust the intensity of both the Green Indicator Lights and the LCD Backlight during instrument operations.
