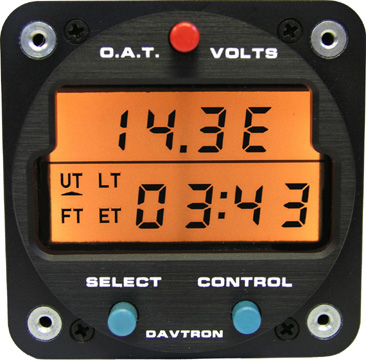

M803 Digital Clock

Price range: $498.00 through $821.00

M803 Features

2 ¼” INTERNAL MOUNT
LASER ENGRAVED FACEPLATE
UNIVERSAL TIME
LOCAL TIME
FLIGHT TIME WITH ALARM
ELAPSED TIME WITH COUNTDOWN TIMER
ELASPED TIME ALARM
OPTION AUDIO ALARM
LIQUID CRYSTAL DISPLAY
VOLTAGE
O.A.T. FAHRENHEIT & CENTIGRADE
NIGHT ILLUMINATION
NVIS GREEN A OPTION
KEEP ALIVE BATTERY OPTION
FAA-PMA APPROVED

Frequently Bought Together

Model Type

Clear

Add to compare

Add to wishlist

Why Pilots Trust AVIA Avionics

Free Ground Shipping Over $399

Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.

Shipping Worldwide

We use DHL or UPS for worldwide shipments. Some shipments may require special processing.

No Sales Tax

Sales tax only applies where required by law.

5 Star Service, White Glove

Strong customer service with fast response times.

Talk to a Real Aviation Expert

Need help placing an order?

Description

Part Number		Part Description
M803-5V		MODEL 803-5V UT, LT, FT, & ET DIGITAL CLOCK 5V LIGHTING, VOLTMETER, OAT (F & C) (TEMP. PROBE INCLUDED)
M803-5V-NVG		MODEL 803-5V-NVG UT, LT, FT, & ET DIGITAL CLOCK 5V NIGHT VISION LIGHTING GREEN A (TEMP. PROBE INCLUDED)
M803B-2-0/5V-BATT		MODEL 803-5V-BELL UT, LT, FT, & ET DIGITAL CLOCK 5V LIGHTING, VOLTMETER, OAT (F & C) (TEMP. PROBE INCLUDED) BELL PN. M803B-2-0/5V-BATT
M803-14V		MODEL 803-14V UT, LT, FT, & ET DIGITAL CLOCK 14V LIGHTING, VOLTMETER, OAT (F & C) (TEMP. PROBE INCLUDED)
M803-14V-NVG		MODEL 803-14V-NVG UT, LT, FT, & ET DIGITAL CLOCK 14V NIGHT VISION LIGHTING GREEN A (TEMP. PROBE INCLUDED)
M803-28V		MODEL 803-28V UT, LT, FT, & ET DIGITAL CLOCK 28V LIGHTING, VOLTMETER, OAT (F & C) (TEMP. PROBE INCLUDED)
M803-28V-NVG		MODEL 803-28V-NVG UT, LT, FT, & ET DIGITAL CLOCK 28V NIGHT VISION LIGHTING GREEN A (TEMP. PROBE INCLUDED)
M803B2-0/28V-B		MODEL 803-28V-CESSNA CLOCK OAT VOLTMETER GRAY BUTTONS 28V LIGHTING CESSNA PN. M803B-2-0/28V-B

Universal Time: 24 hour format
Local Time: 12 hour or 24 hour option
Flight Time: Records in hours and minutes, up to 99:59
Flight Time Alarm: Full set range of flight time
Elapsed Time Count Up: Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
Elasped Time Countdown: Settable from one second to 59 minutes and 59 seconds
Elapsed Time Alarm: Activates at zero when counting down
Voltage Range: 8 Volts to 32 Volts ±0.2 Volts Typ. -55°C to +100°C ±0.2°C Typ.
Internal Lighting: 240 mA at 5V, 240 mA at 14V, 100 mA at 28V (specify voltage when ordering)

Keep Alive Current: 0.004 Amps. 12 to 30 Volts
LCD Display
Input Voltage: 12 to 30 Volts
Input Current: .2 Amps
Battery Type: AA memory battery
NVIS Option: NVIS Green A lighting
Voltage: 12 to 30 Volts
Weight: 5.02 ounces
Warranty: 1 year

M803 Brochure/Manual (PDF)
Electrical (PDF)
Overall Dimensions (PDF)
Continuing Airworthiness (PDF)
Temp. Probe Analog 12ft Part # C307PS (PDF)

INSTALLATION ELIGIBILITY

Bell Helicopter Textron Model 407

Frequently Asked Questions

Q: My clock is displaying all 88:88's on the bottom of the display, what is going on?

A: First check memory battery and see if it is low or dead, remove battery and power up unit and see if that fixes your problem. If not, it is probably a bad display driver and unit would need to be sent in for repair.

Q: My backlighting is uneven or doesn't work, what is wrong?

A: The unit uses incandescent bulbs and some or all of them have probably burnt out.

Q: My unit is reading _ _ _ on temp reading, what does this mean?

A: It means the unit is not seeing the probe, it is either a bad connection, or a bad probe. Check wiring then replace probe if wiring is fine.

Q: My unit is reading --- on the top line of the temp display, what does this mean?

A: This means there is probably a short inside the probe, replace probe, C307PS.

Q: My display digits are off, ghosting, what is wrong?

A: The LCD display has moved inside the unit and is miss-aligned and needs to come back in for alignment. It is possible that the LCD display could be cracked in one of the corners.

Q: My button fell off, how do I fix it?

A: You can either send unit in for repair, or replace button with 5 minute 2 part epoxy. Remove case with single screw in back and glue button to switch shaft. Place unit face down on buttons till glue dries.

Q: When trying to set time, FT, or ET, more than the flashing digit is changing, what is wrong?

A: The clock IC has failed and needs to be replaced.
