Map Light 6 FAA-PMA Cessna Certified LED Maplight | White/Blue, 12V, Panel Mount
$283.20
This MAP6 series (MAP6-W/B12) is Cessna certified, features white & blue lighting, operates on a 12-volt power supply, and has a lamp head diameter of 1.00 inch.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The MAP 6 series panel mountable LED maplight is FAA-PMA certified for use in Cessna aircraft and features six LED lamp with a 20,000 hour life. This map light is available several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. It is easy to install and is fully-adjustable in two directions. Also, the MAP 6 maplight is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA approved protocols for quality.
This MAP6 series (MAP6-W/B12) is Cessna certified, features white & blue lighting, operates on a 12-volt power supply, and has a lamp head diameter of 1.00 inch.
Features
- 20,000 hour LED lamp life
- Fully adjustable in multiple directions with its gooseneck shaft
- Surface mountable
- MIL-SPEC Anodized construction
- Precision CNC machined
- Compatible with all dimming systems
- Available in four color: green, red, blue, or white
Specifications
Installed Height:
2.125 in (at 90° position)
Color:
white/blue
Input Voltage:
12 volt
Mounting Hole:
15/32 in thru hole
Approvals:
FAA-PMA for Cessna aircraft
Multi-color Aircraft LED Maplighting – Certified for Eligible Cessna Aircraft
The Maplight 6 series is available either with all six LEDs of your color choice operating simultaneously, or three white LEDs and three LEDs of your color choice operating independently of the other color. The Maplight 6 series is compatible with all dimming systems. Each LED Maplight 6 is manufactured and tested in accordance with FAA-PMA-approved protocols for quality assurance and customer satisfaction.
Product Details
- 12-volt model; maximum 15 volts DC 30 milliamps
- 24-volt model; maximum 30 volts DC 15 milliamps
- Fully adjustable in two directions
- Total installed height when extended is 2.125 inches
- Mounts in 15/32” thru hole; Surface Mount Adapter available (P/N: SMA/MMII)
- Available in four colors: Red, Green, Blue, White
Maplight 6 - Cessna Certified
For All Certified Aircraft:
Installation of FAA-PMA Maplight 4 and Maplight 6 series lights is a minor modification and does not require an STC or Form 337. Refer to FAA Policy Statement PS-AIR-21-1601
An A&P is required to install or supervise owner installation and document airframe logbook.
Wiring should be installed in accordance with AC 43.13-1B Chapter 11.
Is this the model for you?
Maplight 4 and Maplight 6 are FAA-PMA eligible for installation in all certified aircraft and are direct replacement for the following:
152, A152, F152, FA152, 170, 170A, 170B, 172, 172A, 172B, 172C, 172D, 172E, 172F, 172G, 172H, 172I, 172K, 172L, 172M, 172N, 172P, 172Q, 172RG, 172R, 172S, F172D, F172E, F172F, F172G, F172H, F172K, F172L, F172M, F172N, F172P, FR172E, FR172F, FR172G, FR172H, FR172J, FR172K, P172D, R172E, R172F, R172G, R172H, R172J, R172K, 175, 175A, 175B, 175C, 180, 180A, 180B, 180C, 180D, 180E, 180F, 180G, 180H, 180J, 180K, 182, 182A, 182B, 182C, 182D, 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, 182S, 182T, 188, A188, A188A, A188B, 206, 206H, P206, P206A, P206C, P206D, P206E, U206, U206A, U206B, U206C, U206D, U206E, U206F, U206G, 210, 210A, 210B, 210C, 210D, 210E, 210F, 210G, 210H, 210J, 210K, 210L, 210N, 210R, 336, 337, 337A, 337B, 337C, 337D, 337E, 337F, 337G, 337H, T337B, T337C, T337D, T337E, T337F, T337G, T337H, T337H-SP

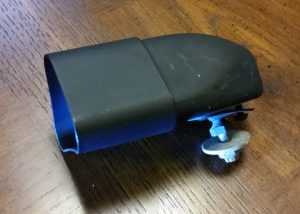

Maplight Assembly Cessna 1470089-14
Maplight Assembly Cessna

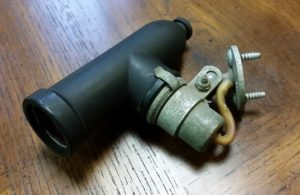

Spotlight Assembly Cessna 0713017-22
Direct Replacement Maplight Part Numbers:
0713017-1
0713017-20
0713017-21
1470089-10
1470089-10-532
1470089-14
1470089-15
1470089-15-279
A-1425A-2
Click for Cessna Parts Lists:
1963-1974 Cessna 172
1975-1976 Cessna 172
1953-1962 Cessna 180-182
1964-1973 Cessna 206

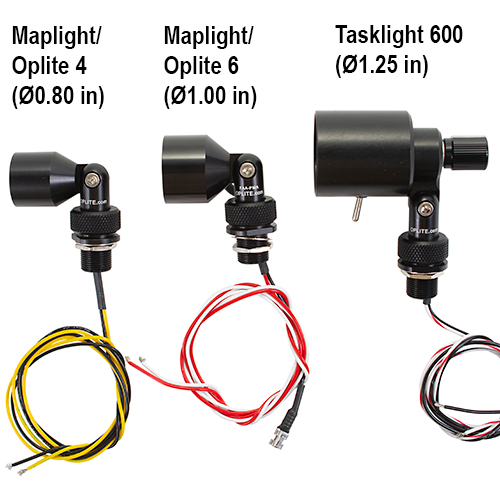

Tasklight 600
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White

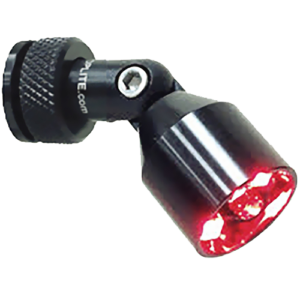

Oplite 4
Experimental
4 LEDs
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 4

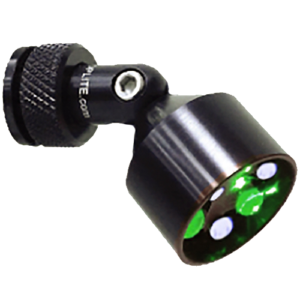

Oplite 6
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 6
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Gooseneck G4
