MVP-50P Engine Monitor for Piston Engine – Experimental
Price range: $5,700.00 through $7,200.00
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description

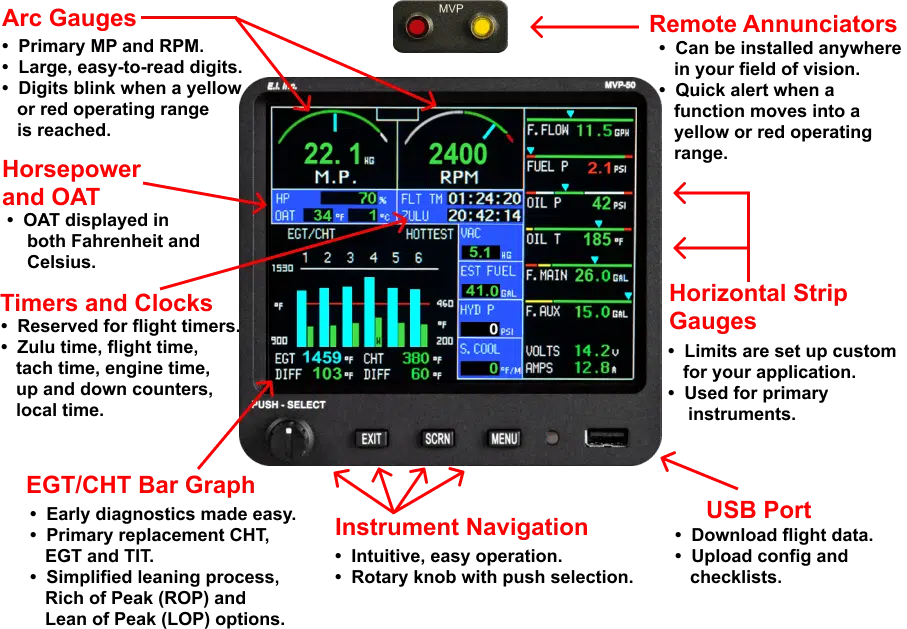

Large High-Resolution Display
- The MVP-50P incorporates a 5.7” sunlight-readable display.
- Accurately monitor dozens of engine and system parameters in one location.
Clean Installation
- MVP-50P mounts flush with the panel, creating a clean panel look and feel.

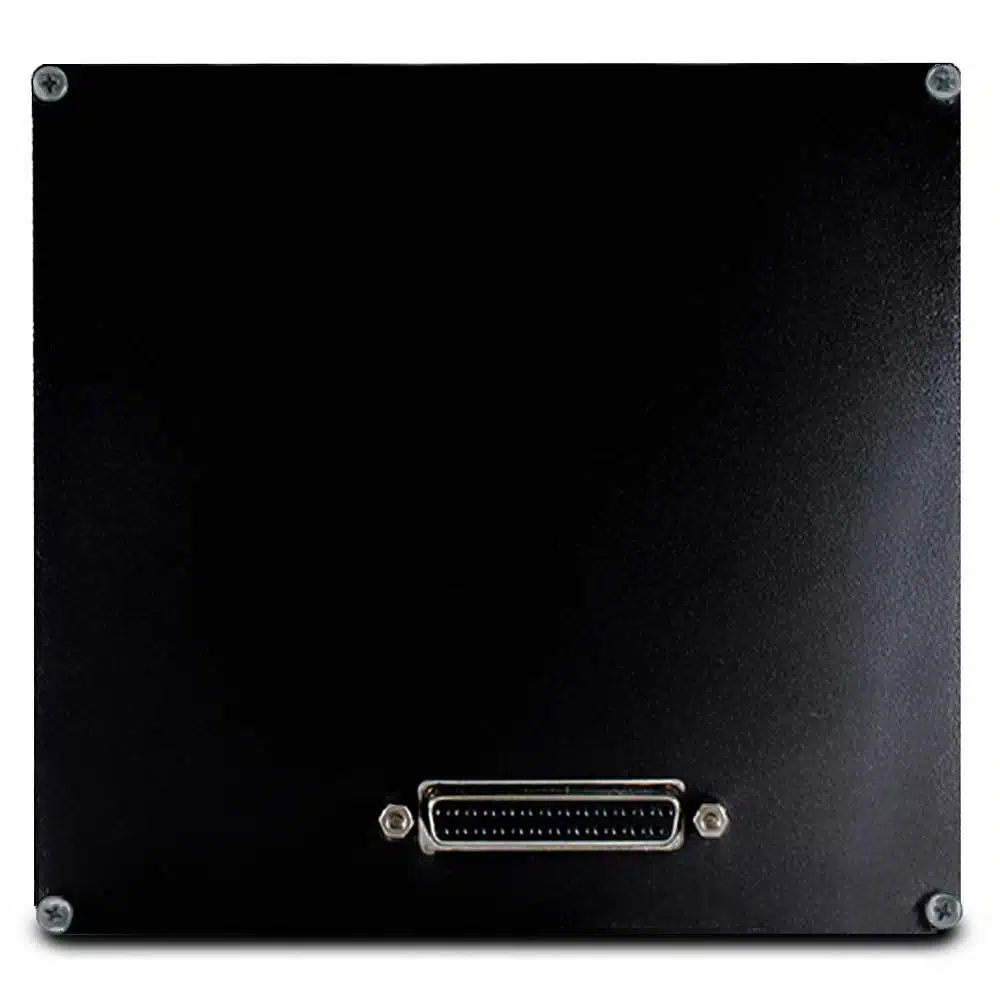

- An Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instrument.
Accurate, dependable, and easy to use
- Electronics International consistently has been a leader in digital engine instrumentation since 1979.
Data Recording of Every Flight
- All monitored functions are stored up to three times per second.
- Up to 1,500 most recent flights stored, downloaded via a USB port.
Watch

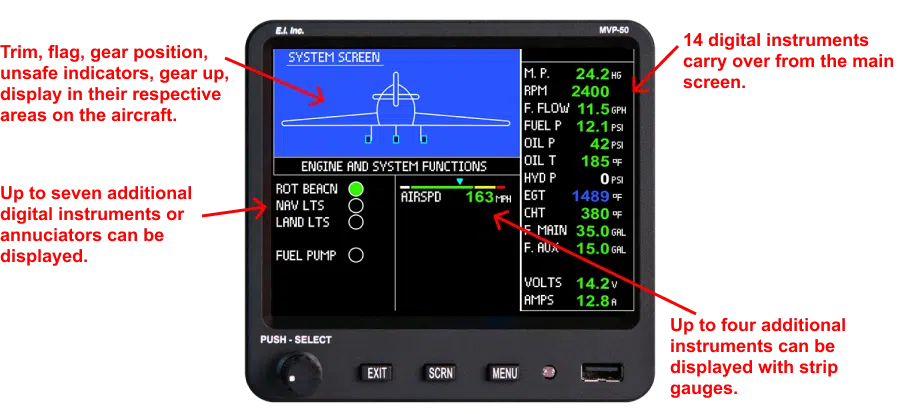

The System Screen is intended to display system functions and the configuration of the aircraft.
Add Fuel
- Set default tank full levels for quick resets when adding fuel
- Auto-adjust K Factor

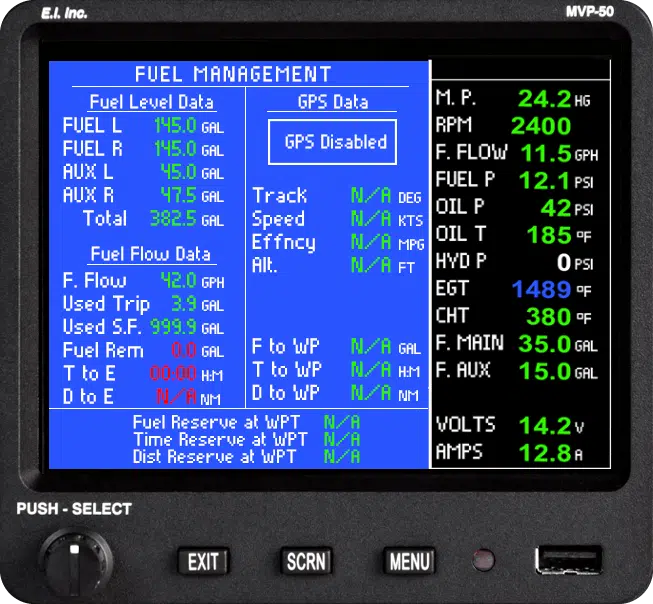

Fuel Management
- Fuel Level Data displays fuel level in each of the tanks
- Fuel Flow Data is calibrated with the K Factor
- GPS syncing assists with fuel remaining until next waypoint
- Fuel reserve information assists the pilot with calculating critical fuel levels
Timers
- Features up, down, and flight timers

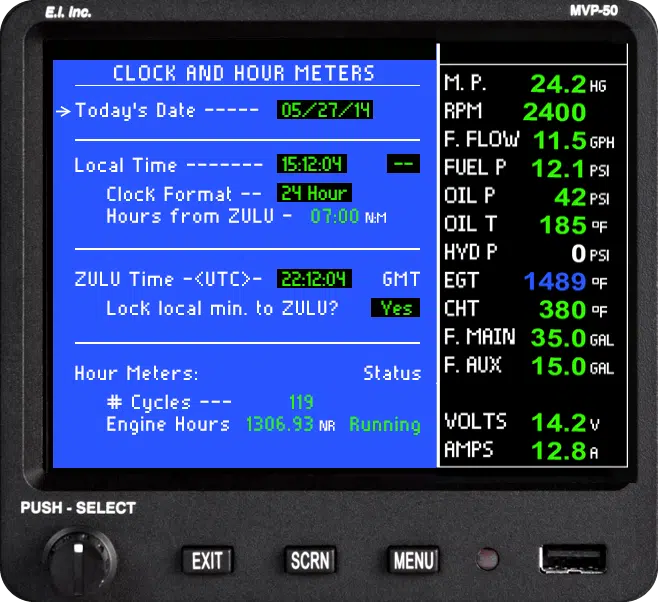

Clock and Hour Meters
- Displays the current date, local time, zulu time, tach time, and engine hours

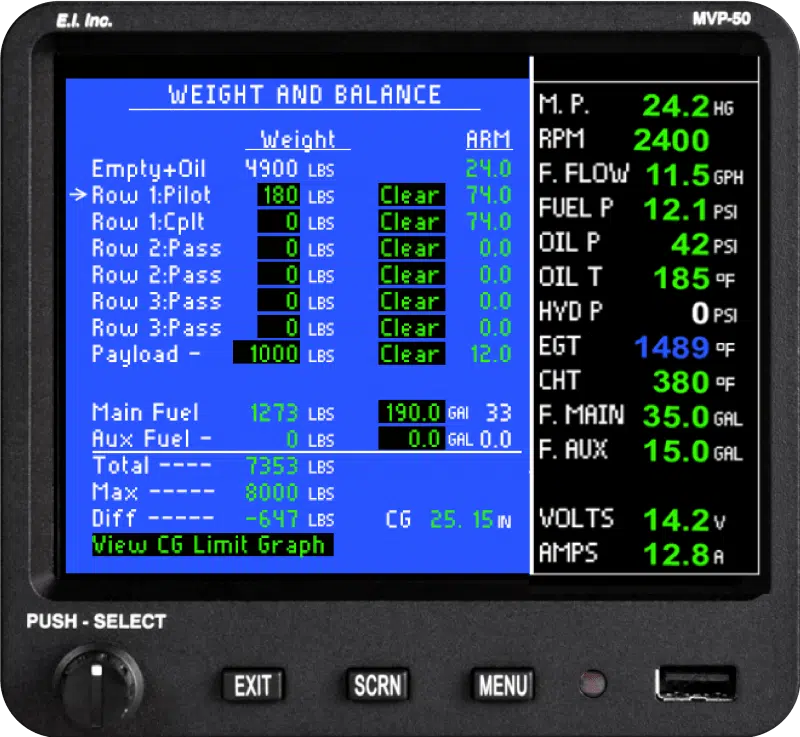

Weight and Balance
- Assists pilots with performing the weight and balance calculation for the aircraft

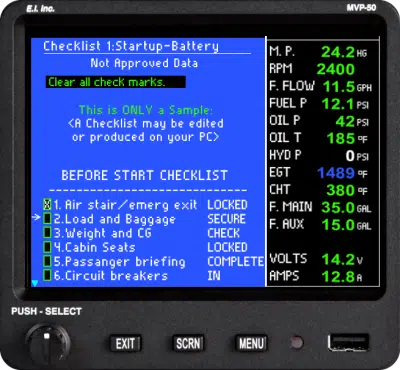

Checklists
- Create checklists for any procedure, such as takeoffs, landings, and emergencies
- Store up to 100 unique, programmable checklists
Data Logs
- Flight Log – Records the date, start time, flight number, and flight time for each flight
- Max Log – Records maximum values reached for a pre-set number of functions during the flight, storing up to 500 flights
- Min Log – Records the minimum values for a pre-set number of functions
- Start Log – Records each engine start, the date, flight number, minimum bus voltage, start time

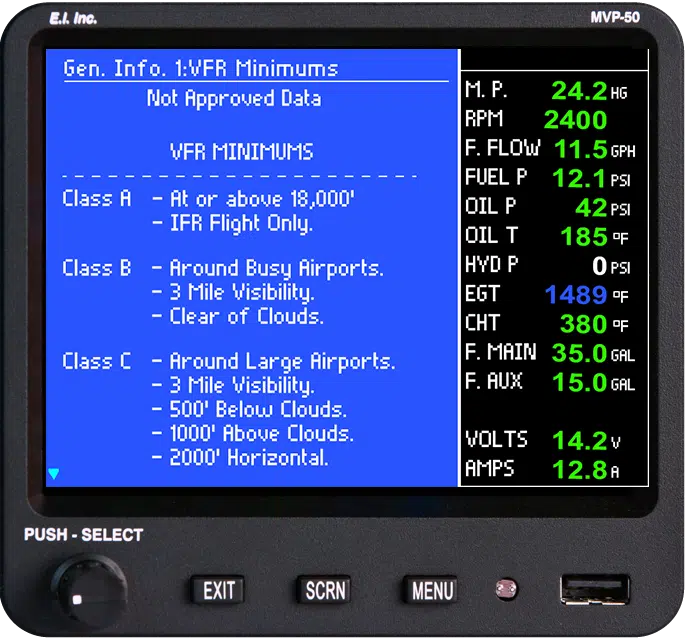

Gen Info and Flight Notes
- Create and store up to 50 custom flight plans and 50 general information screens
- Each flight plan may include distances, fuel requirements, estimated flight times
- General information notes may include items to remember such as VFR weather minimums or general airport guidelines
Two MVP-50Ps provide the ultimate solution for a twin-engine aircraft. The moment an engine problem arises, the MVP display for that engine will display the out-of-limit function and will blink the digital display in the color of its current operating range. This provides immediate recognition of the engine and function that has the problem.
All Packages Include:
Hardware (if selected):
- MVP-50P Color Display Unit
- EDC Engine Data Converter
- Prewired Harness
- All EGT & CHT Probes and Cables
- Oil Pressure Transducer and Cable
- Oil Temperature Probe and Cable
- Fuel Pressure Transducer and Cable
- Fuel Flow Transducer and Cable
- OAT Probe and Cable
- Two RPM Pickups and Cables
- Manifold Pressure Transducer and Cable
- Shunt (for AMPS) and Cable
- Volts Pickup
- 1,000+ Hrs Data Recording
- USB Memory Stick
- AL-1R and AL-1Y (External Cautionary and Warning Lights)
- AV-17 Voice Warning (For Experimentals Only)
- Annunciator Interface
- Resistive Fuel Interface
Other Included Functions:
- Help Screen
- EGT Differential
- CHT Differential
- Shock Cooling
- Horsepower
- Weight and Balance Data
- Weight and Balance Graph
- GPS Interface and Data
- Fuel Efficiency
- Fuel Used for the Trip
- Fuel Used Since Fill Up
- Time to Empty
- Distance to Empty
- Fuel to Waypoint
- Data Recording
- Time to Waypoint
- Distance to Waypoint
- Fuel Reserve
- Time Reserve
- Distance Reserve
- Up Timer
- Down Timer
- Flight Timer
- Tach Timer
- Engine Hours
- Date
- Local Time
- Zulu Time
- Voice Warnings (For Experimentals Only)
- Chelton & GRT Output
MVP-50P Piston Engine Certified Aircraft Packages
Every package is custom built to your POH/AFM. Due to increased demand, lead times can be five or more weeks. Limited rush orders (AOG) are available. Please contact EI for current lead times, rush availability and pricing.
| Description | Package | Retail Price |
| 4-Cylinder Package | MVP-50P-4-C | $7,000 |
| 6-Cylinder Package | MVP-50P-6-C | $7,500 |
| 7-Cylinder Package | MVP-50P-7-C | $7,800 |
| 8-Cylinder Package (two EDC-33Ps) | MVP-50P-8-C | $8,200 |
| 9-Cylinder Package (two EDC-33Ps) | MVP-50P-9-C | $8,500 |
| Twin 4-Cylinder Package (two MVP-50P packages, two EDC-33Ps) | MVP-50P-4T-C | $14,600 |
| Twin 6-Cylinder Package (two MVP-50P packages, two EDC-33Ps) | MVP-50P-6T-C | $15,600 |
MVP-50P Piston Engine Experimental Aircraft Packages
Every package is custom built to your POH/AFM. Due to increased demand, lead times can be five or more weeks. Limited rush orders (AOG) are available. Please contact EI for current lead times, rush availability and pricing.
| Description | Package | Retail Price |
| 4-Cylinder Package | MVP-50P-4 | $6,000 |
| 6-Cylinder Package | MVP-50P-6 | $6,500 |
| 4 or 6-Cylinder FADEC Aerosance Package | MVP-50P-4/6-FADEC | $5,700 |
| 7-Cylinder Radial Package | MVP-50P-7-P | $6,400 |
| 8-Cylinder Air-Cooled Package (two EDC-33Ps) | MVP-50P-8 | $6,200 |
| 8-Cylinder Water-Cooled Package (two EDC-33Ps) | MVP-50P-8W | $6,200 |
| 9-Cylinder Radial Package (two EDC-33Ps) | MVP-50P-9 | $7,200 |
| 12-Cylinder Water Cooled Package (Thunder Mustang, two EDC-33Ps) | MVP-50P-12W | $6,300 |
| Upgrade and save: Use existing probes, cables, and flow transducer.
4 or 6-Cylinder Premium Experimental UPGRADE Package (requires a trade-in engine analyzer to receive this price) | MVP-50P-Exp-C-A | $5,300 |
| Upgrade and save: Use existing probes, cables, and flow transducer.
4 or 6-Cylinder Premium Experimental UPGRADE Package (requires a trade-in engine analyzer and fuel flow computer to receive this price) | MVP-50P-Exp-C-AF | $5,200 |

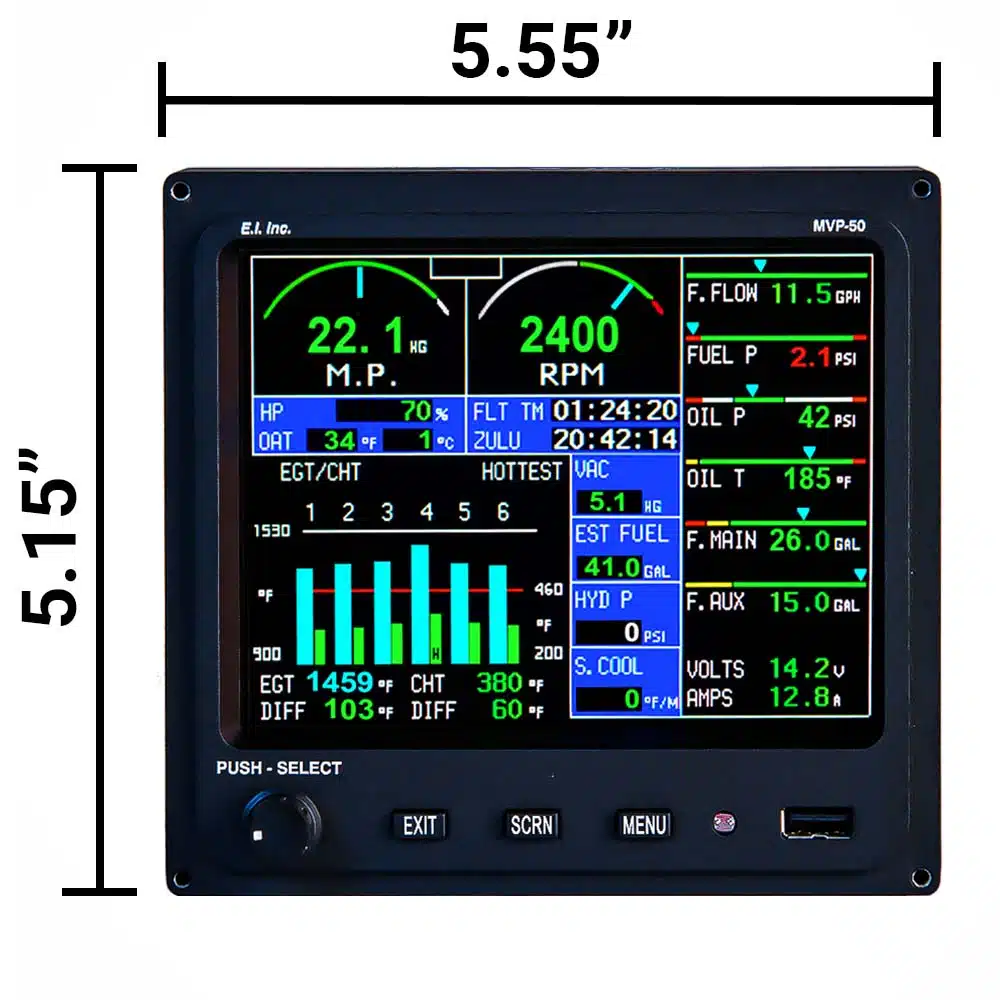

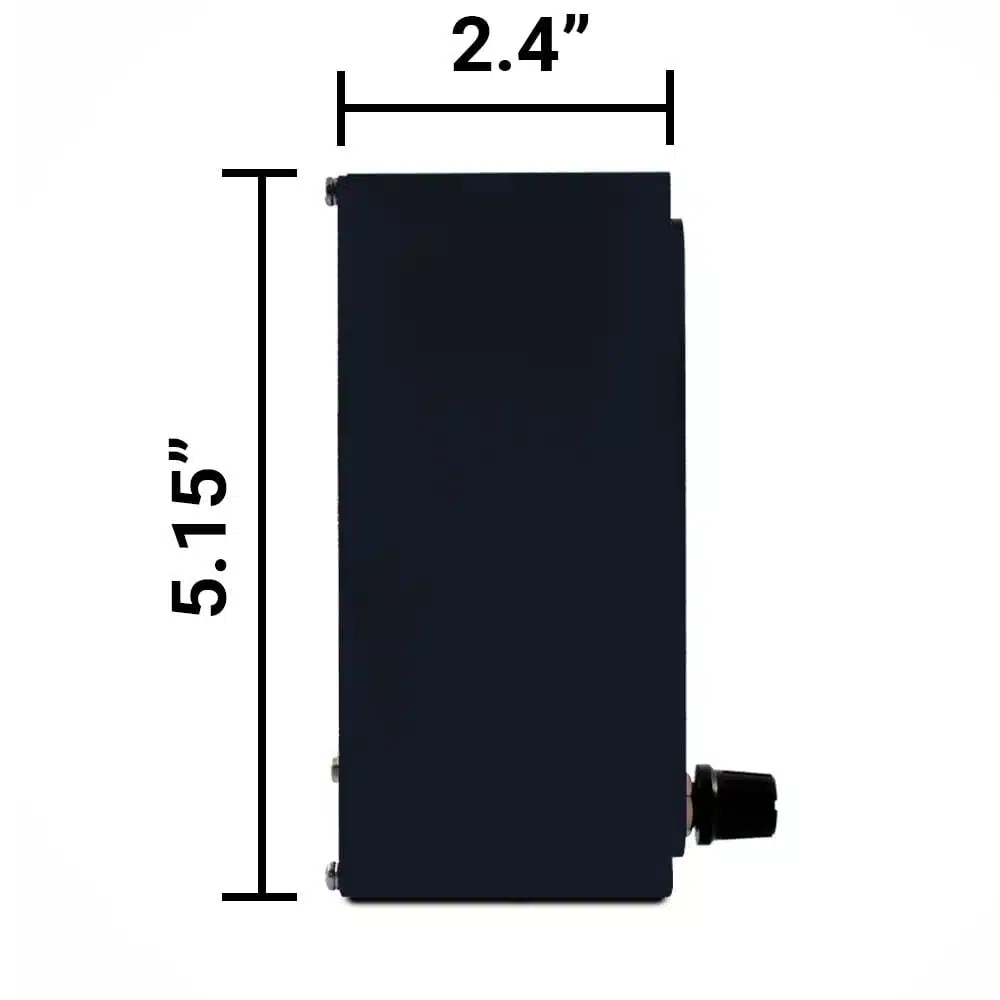

Dimensions
5.55″ W x 5.15″ H x 2.4″ D
Weight
1.9 Pounds (Instrument Only)
Power Requirements
7.5 to 30 Volts
Typical: 0.2 amps @ 12 Volts, 0.1 amps @ 24 Volts
Display
Active Matrix, Sunlight Readable
Backlight
Fully Dimmable for Night Flights
USB Port
Data Download and Software Updates
Internal Storage
Up to 1,500 most recent flights stored. All monitored functions are stored up to three times per second. Recorded flight data can be easily downloaded via USB port.
Certifications
- FAA STC’d as Primary Replacement
- FAA TSO’d to DO-160G
- FAA DO-178 Level C
Layout
All MVP orders are laid out by Electronics International’s FAA DER

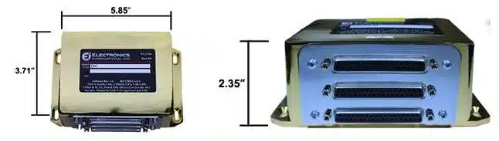

Dimensions
5.85” x 3.71” x 2.35” Deep
Weight
1 Pound
Power Requirements
7.5 to 30 Volts, Typical: 0.1 Amps
Certifications
FAA TSO’d to DO-160G and DO-178 Level C
Internal Storage
1 Volt Channel, 1 Amp Channel, 1 Fuel Flow Channel, 6 Pressure Channels, 17 Temp Channels, 4 Resistive Fuel Level Channels, 4 Capacitive Fuel Level Channels and 2 RPM Channels
