Oplite 4 LED Maplight | White, 12V, Panel Mount
$111.60
This Oplite 4 series (OP4-W12) features white lighting, operates on a 12-volt power supply, and has a lamp head diameter of 0.80 inch.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The Oplite 4 series panel-mountable LED map light features four LEDs for providing the right amount of light for operational tasks. This task light is available in four colors: green, red, blue, and white. It is easy to install and fully adjustable in two directions. Also, the Oplite 4 map light is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA-approved protocols for quality.
This Oplite 4 series (OP4-W12) features white lighting, operates on a 12-volt power supply, and has a lamp head diameter of 0.80 inch.
Features
- 20,000 hour LED lamp life
- Fully adjustable in two directions
- Surface mountable
- MIL-SPEC Anodized construction
- Precision CNC machined
- Compatible with all dimming systems
- Available in four colors: green, red, blue, or white
Specifications
Installed Height:
2.125 in (at 90° position)
Lamp Diameter:
0.80 in
Thread:
15/32-32 x 0.45 in
Color:
White
Input Voltage:
12 V
Mounting Hole:
15/32 in thru hole
Aircraft LED Maplighting – Experimental and Other Industry Applications
Easily installed, dimmable, unobtrusive and efficient, the LED Oplite 4 series consists of four LEDs of the same color that illuminate simultaneously. The LED Oplite 4 series is compatible with all dimming systems. Each LED Oplite 4 is manufactured and tested in accordance with FAA-PMA-approved protocols for quality assurance and customer satisfaction.
As of June 2022, Oplite 4 and 6 are now FAA NORSEE approved. NORSEE approval allows for installation "as a minor alteration on an Aircraft Certified under 14 CFR Part 23 or precursor regulations, as outlined in FAA memorandum number PS-AIR-21.8-1602". Read Oplite's NORSEE approval document here.
Precision CNC Machined • Mil-Spec Anodized • 20,000 Hours LED Life
Product Details
- 12-volt model; maximum 15 volts DC 30 milliamps
- 24-volt model; maximum 30 volts DC 15 milliamps
- Fully adjustable in two directions
- Total installed height when extended is 2.125 inches
- Mounts in 15/32” thru hole; Surface Mount Adapter available (P/N: SMA/MMII)
- Gooseneck options available
- Available in four colors: Red, Green, Blue, White
Oplite 4 – NORSEE Approval
Optional Surface Mount Adapter for Panel Mount Cockpit Lights (P/N: SMA/MMII)

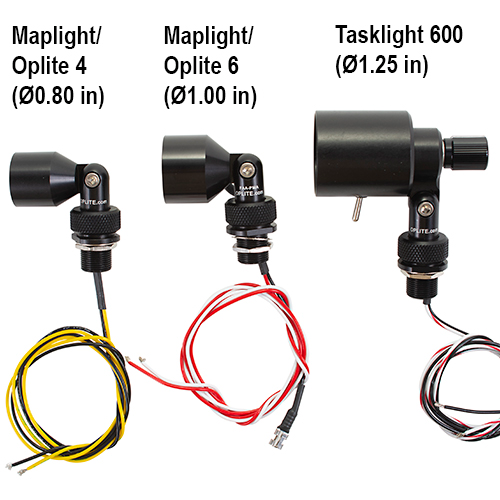

Tasklight 600
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Oplite 4
Experimental
4 LEDs
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 4
Oplite 6
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 6
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Gooseneck G4
