Oplite 6 Multi-Color LED Maplight | White/Blue, 12V, Panel Mount
$141.60
This Oplite 6 series (OP6-W/B12) features white and blue lighting, operates on a 12-volt power supply, and has a lamp head diameter of 1.00 inch.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The Oplite 6 map light features six LED lamps with a 20,000-hour life. This map light is available in several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. The Oplite 6 is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA-approved protocols for quality.
This Oplite 6 series (OP6-W/B12) features white and blue lighting, operates on a 12-volt power supply, and has a lamp head diameter of 1.00 inch.
Features
- 20,000 hour LED lamp life
- Fully adjustable in two directions
- Surface mountable
- MIL-SPEC Anodized construction
- Precision CNC machined
- Compatible with all dimming systems
- Available in four color or combinations of green, red, blue, or white
Specifications
Installed Height:
2.125 in (at 90° position)
Lamp Diameter:
1.00 in
Thread:
15/32-32 x 0.45 in
Color:
White/blue
Input Voltage:
12 V
Mounting Hole:
15/32 in thru hole
Multi-color Aircraft LED Maplighting – Experimental and Other Industry Applications
The Oplite 6 series is available either with all six LEDs of your color choice operating simultaneously, or three white LEDs and three LEDs of your color choice operating independently of the other color. The Oplite 6 series is compatible with all dimming systems. Each LED Oplite 6 is manufactured and tested in accordance with FAA-PMA-approved protocols for quality assurance and customer satisfaction.
As of June 2022, Oplite 4 and 6 are now FAA NORSEE approved. NORSEE approval allows for installation "as a minor alteration on an Aircraft Certified under 14 CFR Part 23 or precursor regulations, as outlined in FAA memorandum number PS-AIR-21.8-1602". Read Oplite's NORSEE approval document here.
Precision CNC Machined • Mil-Spec Anodized • 20,000 Hours LED Life
Product Details
- 12-volt model; maximum 15 volts DC 30 milliamps
- 24-volt model; maximum 30 volts DC 15 milliamps
- Fully adjustable in two directions
- Total installed height when extended is 2.125 inches
- Mounts in 15/32” thru hole; Surface Mount Adapter available (P/N: SMA/MMII)
- Gooseneck options available
- Available in four colors/combinations: Red, Green, Blue, White
Oplite 6 – NORSEE Approval

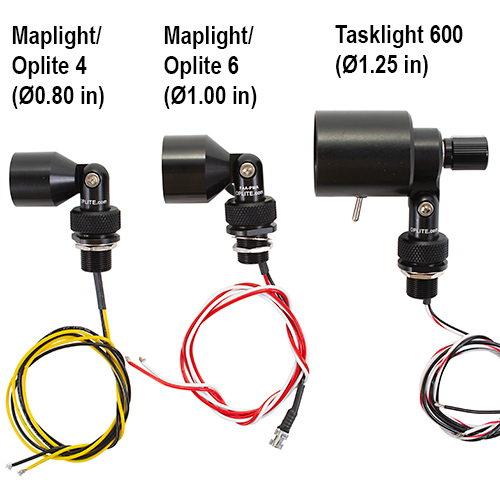

Tasklight 600
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Oplite 4
Experimental
4 LEDs
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 4
Oplite 6
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 6
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Gooseneck G4
