ping2020i
$2,200.00

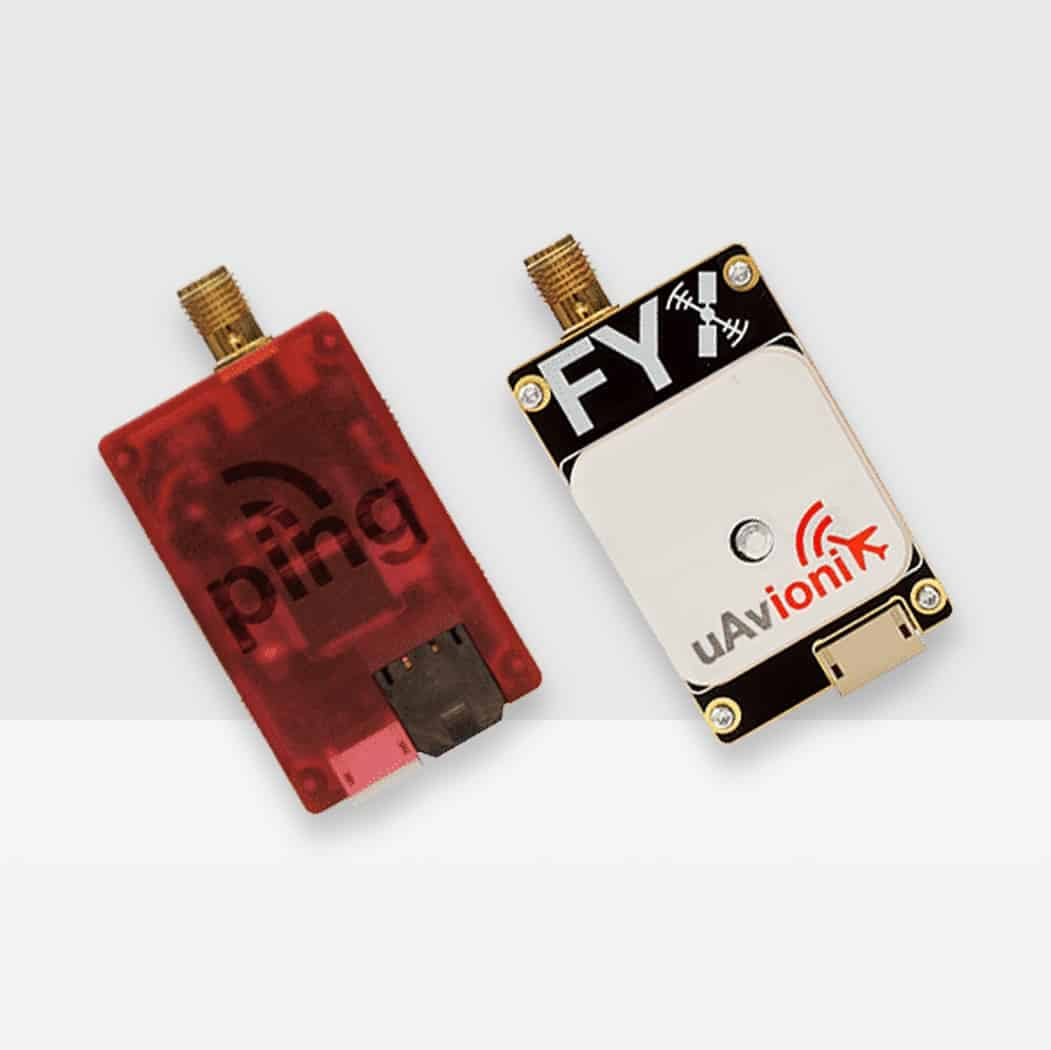

Integrated all-in-one ADS-B, GPS, and Baro
Ping2020i is the world’s smallest and lightest full range ADS-B transceiver. ADS-B helps aircraft operators sense and avoid possible collisions through a constant exchange of real time position data. ADS-B is mandated by the FAA for all aircraft in the U.S. National Airspace by 2020.  Used now primarily on manned aircraft, uAvionix has miniaturized the equipment to make it usable for small drones. ping2020i measures 25mm x 39mm x 12mm, which is a fraction of the size of earlier units. At just 20 grams, ping2020i is ideal for UAS applications to improve safety with minimal impact to capability and performance. ping2020i detects ADS-B aircraft within a 100 statute mile radius in real time, dramatically improving drone operator awareness of threats in the area including aircraft beyond line of sight.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The world’s smallest and lightest ADS-B solution for sUAS
Ping2020i is the world’s smallest, lightest, and most affordable full-range, dual-link Automatic Dependent Surveillance-Broadcast (ADS-B) transceiver with integrated Satellite Based Augmentation System (SBAS) Global Positioning System (GPS) and precision barometric sensor. At just 26 grams, it assists with Detect and Avoid (DAA) for Unmanned Aircraft Systems (UAS) operations in the National Airspace System (NAS).
All-in-one 978MHz ADS-B, GPS, and Baro
Ping2020i detects aircraft threats on both 1090MHz and 978MHz within a 100 statute mile radius in real-time and allows nearby aircraft to see you on 978MHz.
ping2020i orders include everything you need to get up and running in minutes:
- ping2020i UAT(978MHz) ADS-B transceiver
- Power cable
- ADS-B Antenna
- Device programmer
- Wiring harnesses for Pixhawk, Pixhawk 2
Integrated WAAS GPS
The integrated uAvionix FYX GPS provides accuracy and integrity for protection against jamming and GPS anomalie
Plug and Play with Your Autopilot
Ping2020i integrates seamlessly with Ardupilot and PixHawk based autopilots, getting you from setup to launch in only a few lines of code. Extend ping2020i’s hardware integrity to the rest of your platform with Auterion Skynode, the enterprise-ready autopilot.
Documentation
| Document Name | Revision | Date |
|---|---|---|
| ping2020i Datasheet | E | 05/20/2025 |
| ping2020i Quick Start Guide | B | 10/5/2018 |
| MAVLink OEM Integration Guide | 1.17 | 7/5/2018 |
| ping2020i Arudpilot Integration Guide | – | 6/11/2018 |
Applications and Utilities
| Name | Version/Rev | Date |
|---|---|---|
| ping Mobile Application (IOS) | 1.6 | 6/23/2017 |
| ping Mobile Application (Android) | 1.7.3 | 3/7/2019 |
