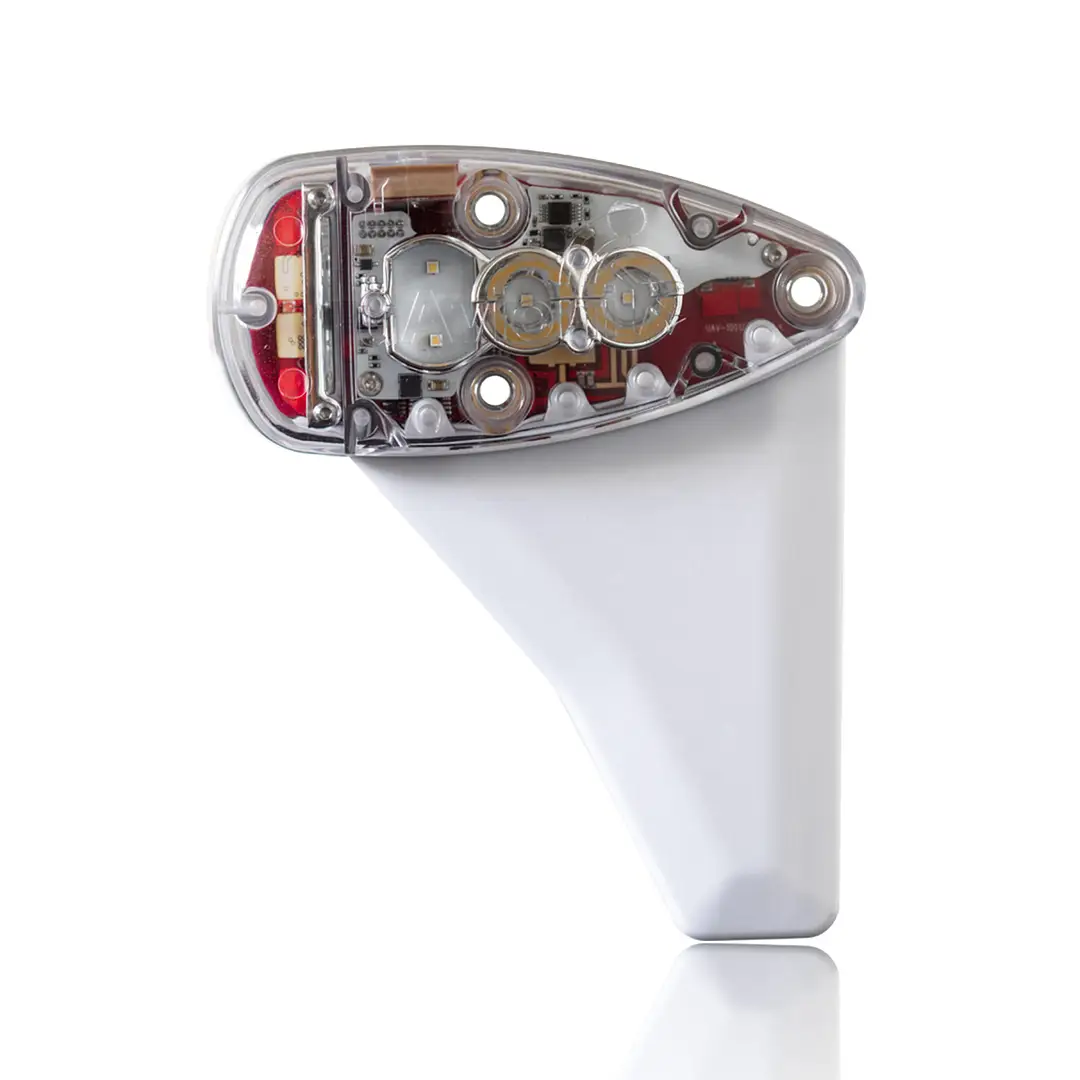

skyBeacon
Original price was: $2,199.00.$1,979.00Current price is: $1,979.00.
ADS-B Out | WAAS GPS | Altimeter | LED Nav Light | LED Anti-Collision (Strobe)
The world’s only wingtip-mounted ADS-B OUT solution to meet the 2020 mandate. skyBeacon has the lowest installation cost and largest approved model list of any UAT ADS-B OUT solution.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Works with Your Existing Mode C Transponder
skyBeacon works with any existing Mode C Transponder. uAvionix’s patented power transcoder technology seamlessly communicates with your existing transponder over your aircraft’s electrical system.
Remain Anonymous
Just because you are ADS-B equipped, doesn’t mean you want to be tracked. With skyBeacon’s Anonymous Mode, your aircraft identification remains hidden from the ADS-B OUT signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.
Self-Contained WAAS GPS
A built-in WAAS GPS provides skyBeacon with rule compliant position data for ADS-B transmission. No additional wiring or external GPS antenna mounting is required.
LED Position and Strobe Light
Extremely efficient LED position and anti-collision lighting complete the skyBeacon package.
Position Lighting:Â TSO-C30c
Anti-Collision:Â TSO-C96a
Install is a Breeze
Simply replace the aircraft position light, that’s it! No airframe modifications or additional antennas are required. Plus, it works with your existing transponder. skyBeacon installation uses the existing mounting location, breaker, and wiring, with 3 screws and 3 wires. The transponder data is provided via the existing aircraft wiring system using the power transcoder.
Instant Setup and Configuration
Mechanically installing skyBeacon is the first easy step. With uAvionix’s mobile app, configuration is just as simple. Our mobile application (available for both Apple iOS and Android) guides your installer through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets.
Wingtip Adapters
If your wingtip or lighting configuration is not supported by skyBeacon, you can purchase a fairing adapter kit for various aircraft.
301Â fairing (left)
| Fits the following Cessna aircraft: |
|---|
| 150L, 150M |
| 152 |
| 175C |
| 180G, 180H |
| 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N |
| 185, 185A, 185B, 185C, 185D, 185E, A185F |
| P206E, U206E |
302Â fairing (left)
| Fits the following Cessna aircraft: |
|---|
| 172L, 172M, 172N, 172P, 172Q, 172R, 172S |
| 172RG |
| 177B, 177RG |
| 180J, 180K |
| 182P, 182Q, 182R, 182S, 182T, R182, T182, TR182 |
| 185, 185A, 185B, 185C, 185D, 185E, A185F |
| U206F, U206G |
| TU206F, TU206G |
Please note that the fairings do not alter existing lighting mounting locations. Fairing trimming may be required for proper fitment.
Verify mounting hole locations prior to placing an order using this 1:1 template.
Tech Specs
| Specification | Value |
|---|---|
| Input Voltage | 11-31V DC |
| Operating Power | 3 watts |
| Size | 124x116x48mm |
| Weight | 90 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45°C to 80°C |
| 978MHz UAT Transmitter | |
| Power Classification | DO-282B Medium Power |
| WAAS GPS | |
| Tracking Reacquisition Cold Start | -166dBm -160dBm -148dBm |
| LED Position Light | |
| Color | Aviation Red |
| Intensity | 40 candelas |
| Wi-Fi Configuration | |
| Physical | 802.11b/g/n |
| App Compatibility | iOS, Android |
| Power Transcoder | Decodes Mode A and C via Power Transcoder |
