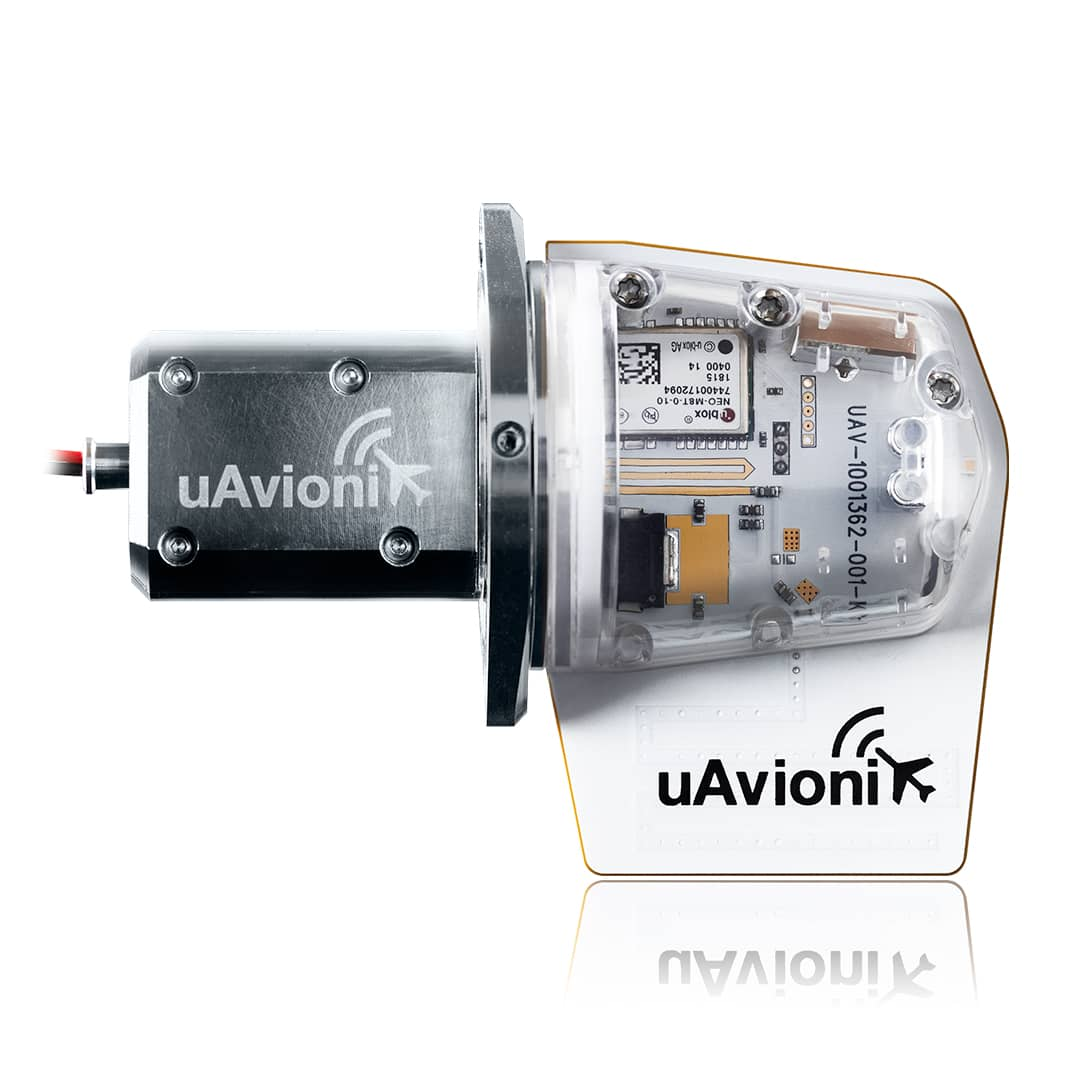

tailBeacon
$2,199.00
ADS-B Out | WAAS GPS | Altimeter | LED Nav Light
tailBeacon is the latest all-in-one certified ADS-B solution from uAvionix.
Remove your standard rear position light and replace with tailBeacon for ADS-B compliance.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
In-flight Safety Simplified
Keep it simple. Add ADS-B OUT to your certified or experimental aircraft by upgrading your rear position light to tailBeacon and meet the FAA’s 2020 mandate.
Works with Your Existing Mode C Transponder
tailBeacon works with any existing Mode C Transponder. uAvionix’s patented power transcoder technology seamlessly communicates with your existing legacy transponder over your aircraft’s electrical system.
Remain Anonymous
Just because you are ADS-B equipped, doesn’t mean you want to be tracked. With tailBeacon’s Anonymous Mode, your aircraft identification remains hidden from the ADS-B OUT signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.
Self-Contained WAAS GPS
tailBeacon contains its own TSO Certified uAvionix truFYX WAAS GPS. You have no additional GPS to purchase or integrate with!
Watch your Six
There’s more to tailBeacon than just ADS-B compliance. By replacing your existing rear position light with tailBeacon, you’re getting a 2x brighter LED nav light with a fraction of the power consumption. With tailBeacon’s 20,000 hour rated LEDs, you can fly with confidence knowing your rear’s covered.
Mounts with a Turn
The new tailBeacon is the easiest, most affordable installation on the market. Simply remove your existing position light, install the mounting bracket, connect to existing power wires, slide in tailBeacon, and turn to lock in place. It’s that easy!
Instant Setup and Configuration
Mechanically installing tailBeacon is the first easy step. With uAvionix’s mobile app, configuration is just as simple. Our mobile application (available for both Apple iOS and Android) guides your installer through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets.
| Specification | Value |
|---|---|
| Input Voltage | 11-31V DC |
| Operating Power | 3 watts |
| Size | 92x43x73mm |
| Weight | 70 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45 to 70°C |
| 978MHz UAT Transmitter | |
| Power Classification | DO-282B Medium Power |
| WAAS GPS | |
| Tracking Reacquisition Cold Start | -166dBm -160dBm -148dBm |
| LED Position Light | |
| Color | Aviation White |
| Intensity | 40 candelas |
| Wi-Fi Configuration | |
| Physical | 802.11b/g/n |
| App Compatibility | iOS, Android |
| Power Transcoder | Decodes Mode A and C via Power Transcoder |
