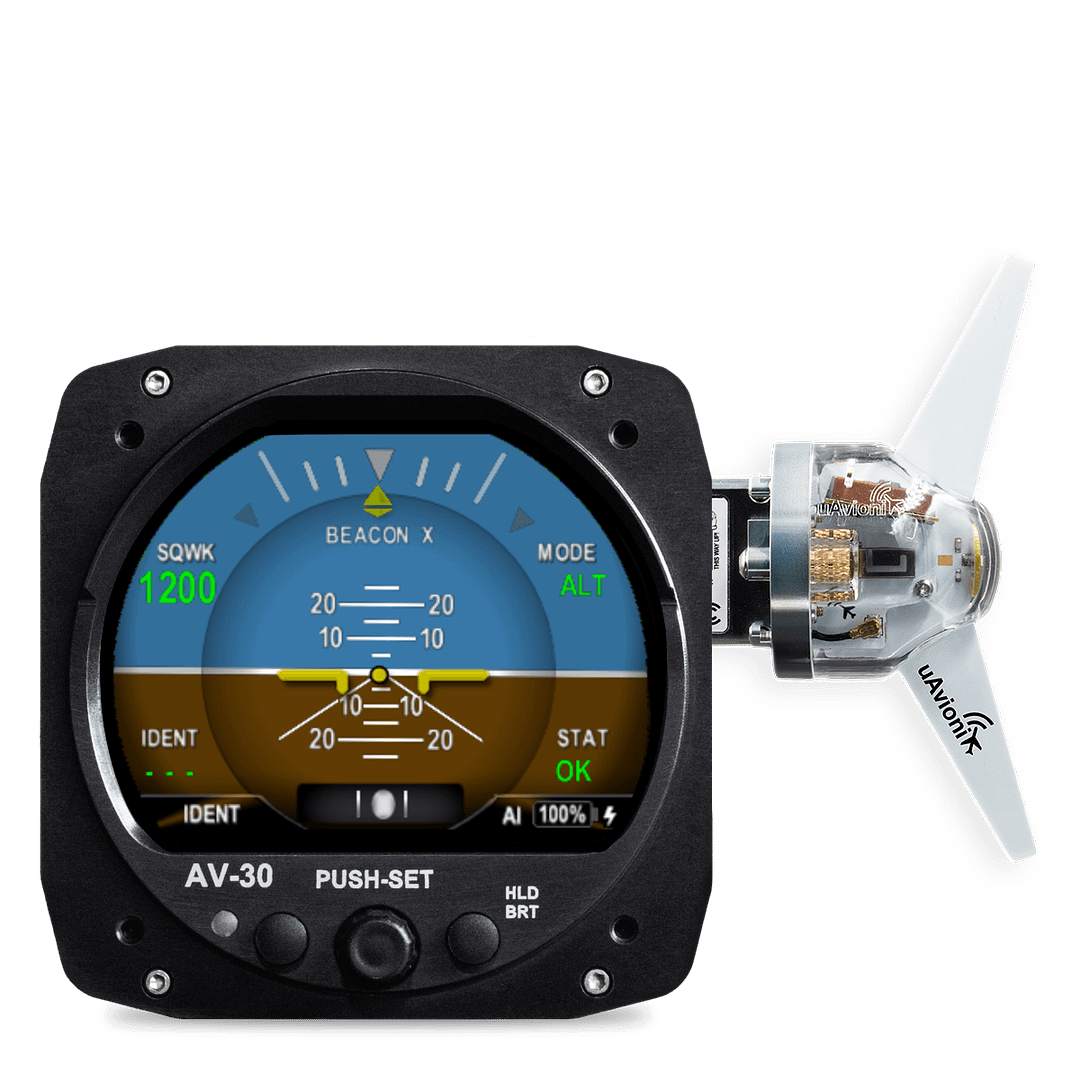

tailBeaconX TSO + AV-30-E Bundle
Original price was: $4,148.00.$3,733.00Current price is: $3,733.00.
For Experimental Installation Only
The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations. Extend tailBeaconX and your panel’s functionality when you pair AV-30 as tailBeaconX’s control head. AV-30 also functions as a digital primary AI or DG display with even more features for limitless possibilities.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
Fly Without Boundaries
tailBeaconX is the next era of global ADS-B. Compatible with surface and space-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and aviation GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.
Transponder Redefined
Â
Mode S ADS-B OUT Transponder
Mode S + ADS-B OUT Transponder meets airspace requirements worldwide.
Integrated Certified GPS Receiver
tailBeaconX includes a certified SBAS GPS receiver and antenna. No additional GPS is required.
ADS-B from Space
The tailBeaconX with integrated dipole antenna is specifically designed to maximize performance when tracked by space-based ADS-B satellite constellations.
LED Lighting
The integrated 20,000 hour rated LED position light ensures the tailBeaconX draws less power than your
old incandescent bulb.
Think Outside the Airframe
tailBeaconX is the world’s first transponder designed as a rear position light replacement. The 1090MHz Mode S ADS-B OUT transponder satisfies the requirements for all existing and inevitable ADS-B regulations worldwide, especially those leveraging space-based ADS-B. Fly knowing no matter your destination, tailBeaconX will keep your aircraft connected.
World-Wide Coverage
tailBeaconX embraces the future, providing precise ADS-B data to satellite networks without the need for diversity antennas. When it comes to terra firma, tailBeaconX also exceeds the performance of traditional panel installed transponders that use belly mount antennas.
Less Ground Time Easiest Install
tailBeaconX mounts in place of your existing rear position light. The GPS, space-based, and ground-based antennas are integrated in to the lens housing. No new holes or pentetration of pressure vessels are required making tailBeaconX the lowest-hassle easiest install period.
Install Comparison
- tailBeaconX
- Other Diversity Transponders
tailBeaconXÂ only requires serial control to the rear position light location. No new antennas to mount, no new holes in the airframe. The cost and complexity of the tailBeaconX installation is minimal.
A traditional diversity installation requires three seperate antennas. The GPS antenna and transponder antennas are typically not included increasing cost. Each antenna requires a separate coaxial run. In most cases, the entire aircraft interior must be removed to complete the installation. Labor for the installation typically exceeds the cost of the equipment.
Looking to the Future
tailBeaconX is the first commercially available avionics solution developed with the needs of Urban Air Mobility (UAM) in mind. Electric Vertical Take Off and Landing (eVTOL) aircraft, powered by batteries and alternative fuels, require radically different solutions than those that exist today. tailBeaconX weighs only 90 grams, takes no critical volume from an internal avionics bay, incorporates its own antennas, and draws only 3 watts of power. This results in longer flight times and higher payload capacity for the next generation of airborne mobility.
Instant Setup and Configuration
Mechanically installing tailBeacon is the first easy step. With uAvionix’s mobile app, configuration is just as simple. Our mobile application (available for both Apple iOS and Android) guides your installer through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets.
More than a Mandate
The AV-20-E and AV-30 have been upgraded to include transponder control functionality! The tailBeaconX combined with the AV-30-E or AV-20-E multiplies your cockpit functionality while future-proofing your ADS-B system to meet current and inevitable mandates worldwide.
You’re in Control
tailBeaconX replaces your existing transponder and upgrades your rear position light. Unimaginative panel-mount transponders and ugly antennas are a thing of the past with tailBeaconX. All that’s needed is a control head inside the aircraft to set your squawk and mode.
tailBeaconX has several control options, including the uAvionix AV-20-E and AV-30 EFIS.
tailBeaconX is also compatible with many existing EFIS’ such as GRT and MGL.
| Specification | Value |
|---|---|
| Input Voltage | 11-31V DC |
| Operating Power | 3 Watts |
| Size | 113x105x48mm |
| Weight | 140 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45°C to 70°C |
| 1090ES ADS-B Transmitter | |
| WAAS GPS | |
| Tracking Reacquisition Cold Start | -166dBm -160dBm -148dBm |
| LED Position Light | |
| Color | Aviation White |
| Intensity | 20 candelas |
| Control Head | Â |
| Physical | RS232 or Power Line Modem |
| Protocol | UCP |
| Regulatory | Â |
| FCC ID: | 2AFFTP200S |
