Tasklight 600 LED Cockpit Map Light | Gooseneck, White/Green, 12V-24V, Panel Mount
$350.40
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The Oplite 6 map light features six LED lamps with a 20,000-hour life. This map light is available in several configurations: all green, red, white, or blue lighting; or with three white lamps and three green, red, white, or blue lamps. The Oplite 6 is compatible with all dimming systems, manufactured and tested in accordance with FAA-PMA-approved protocols for quality.
This Oplite 6 series (OP6-W/R24) features white & red lighting, operates on a 24-volt power supply, and has a lamp head diameter of 1.00 inc
Features
- 20,000 hour LED lamp life
- Fully adjustable in two directions
- Surface mountable
- MIL-SPEC Anodized construction
- Precision CNC machined
- Compatible with all dimming systems
- Available in four color or combinations of green, red, blue, or white
Specifications
Installed Height:
2.125 in (at 90° position)
Lamp Diameter:
1.00 in
Thread:
15/32-32 x 0.45 in
Color:
White/red
Input Voltage:
24 V
Mounting Hole:
15/32 in thru hole
Everything a Pilot Needs All Built into One Light
The Tasklight 600, our most popular light, features a built-in dimmer & color selection knob and a built-in on/off switch. It is available in 14 combinations, including single color, dual color, thru-hole or surface mount, and gooseneck mount.
The Tasklight 600 is available in the choice of solid red, solid green, solid blue, solid white, red & white, green & white, or blue & white.
Single color versions – Once installed, the user can control the intensity of all six LEDs operating simultaneously. This is done by rotating the knob located on the housing. On/off is controlled by the toggle switch also mounted on the housing.
Dual color versions – Once installed, the user can select three white LEDs or three LEDs of color choice operating independently of white. This is done by rotating the intensity knob located on the housing – the half-way point of the knob rotation is the transition point from all-white to all-color. On/off is controlled by the toggle switch also mounted on the housing.
• Mil-Spec Anodized • 20,000 Hours LED Life
Example of dual color version
Each LED Tasklight 600 is manufactured and tested to ISO 9001:2015 and AS9100D quality standards and traceability. As of June 2022, the Tasklight 600 series is FAA NORSEE approved. NORSEE approval allows for installation “as a minor alteration on an Aircraft Certified under 14 CFR Part 23 or precursor regulations, as outlined in FAA memorandum number PS-AIR-21.8-1602.” Read Oplite’s NORSEE approval letter here. Precision CNC Machined from a solid 6061-T6 aluminum
Product Details
- Operates with input voltages ranging from 10v to 28v
- Compatible with 14v and 28v systems
- Fully adjustable in two directions (thru-panel version)
- Fully adjustable in multiple directions (gooseneck version)
- Mounts in 15/32″ thru hole; Surface Mount Adapter available (P/N: SMA/MMII)
- Engineered and produced in adherence to AS9100 certification
- Exceptional durability and shock and vibration resistance
Tasklight 600 – NORSEE Approve
Available in Thru Panel Mount or with optional Surface Mount Adapter
6-Inch Flexible Shaft Gooseneck Mount
Applications
- Cockpit lighting
- Panel lighting
- Instrument lighting
- Map light
- Precision cabin lighting
- Aviation lighting
- Aircraft interior
- Chart light
Industries
- Airline
- Aerospace
- Military
- Boating
- Recreational vehicle
- Industrial settings

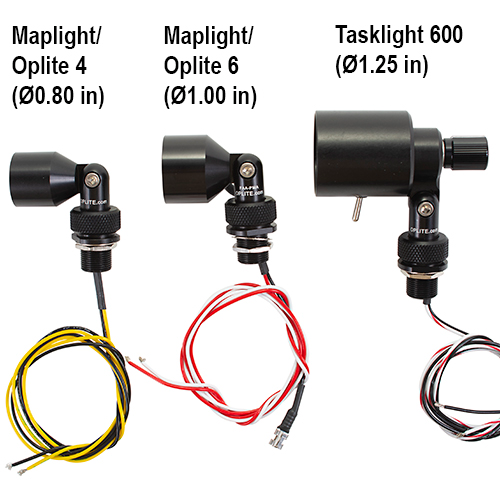

Tasklight 600
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Oplite 4
Experimental
4 LEDs
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 4
Oplite 6
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 6
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Gooseneck G4
