Tasklight 600 LED Cockpit Maplight | Gooseneck, White/Blue, 12V-24V, Panel Mount
$350.40
This Tasklight 600 has a white and blue color, a six-inch gooseneck shaft, and a lamp head diameter of 1.25 inch.
Frequently Bought Together
Why Pilots Trust AVIA Avionics
Enjoy fast UPS, USPS, or DHL delivery on qualifying orders.
We use DHL or UPS for worldwide shipments. Some shipments may require special processing.
Sales tax only applies where required by law.
Strong customer service with fast response times.
Description
The Tasklight 600 maplight installs easily into the panel and features a built-in dimmer switch and on/off switch. This maplight is available in a single color mode or dual color mode: all red, all white, all blue, or all green; as well as red & white, blue & white, or green & white. These task lights are manufactured and tested to ISO 9001:2008 and AS9001C for quality and traceability.
This Tasklight 600 has a white and blue color, a six-inch gooseneck shaft, and a lamp head diameter of 1.25 inch.
Features
- Built-in dimmer & On/Off switch
- Compatible with 12-volt and 24-volt systems
- Machined from high quality CNC machined, 6061T6 aluminum
- Black anodized
- Dual color models: red & white, blue & white, green & white
- Single color models: red, white, blue, and Green
- Available in either thru panel mount or a six-inch gooseneck
Specifications
Gooseneck Length:
6.00 in
Gooseneck Bend Diameter:
1.75 in, min.
Lamp Head:
1.25 x 2.40 in
Thread:
5/16-24 x 0.25 in
Color:
white & blue
Input Voltage:
12 - 24 volt
Mounting Hole:
15/32 in thru hole
Approvals:
engineered in adherence to AS9100 certification
Everything a Pilot Needs All Built into One Light
The Tasklight 600, our most popular light, features a built-in dimmer & color selection knob and a built-in on/off switch. It is available in 14 combinations, including single color, dual color, thru-hole or surface mount, and gooseneck mount.
The Tasklight 600 is available in the choice of solid red, solid green, solid blue, solid white, red & white, green & white, or blue & white.
Single color versions – Once installed, the user can control the intensity of all six LEDs operating simultaneously. This is done by rotating the knob located on the housing. On/off is controlled by the toggle switch also mounted on the housing.
Dual color versions – Once installed, the user can select three white LEDs or three LEDs of color choice operating independently of white. This is done by rotating the intensity knob located on the housing – the half-way point of the knob rotation is the transition point from all-white to all-color. On/off is controlled by the toggle switch also mounted on the housing.
• Mil-Spec Anodized • 20,000 Hours LED Life
Example of dual color version
Each LED Tasklight 600 is manufactured and tested to ISO 9001:2015 and AS9100D quality standards and traceability. As of June 2022, the Tasklight 600 series is FAA NORSEE approved. NORSEE approval allows for installation “as a minor alteration on an Aircraft Certified under 14 CFR Part 23 or precursor regulations, as outlined in FAA memorandum number PS-AIR-21.8-1602.” Read Oplite’s NORSEE approval letter here. Precision CNC Machined from a solid 6061-T6 aluminum
Product Details
- Operates with input voltages ranging from 10v to 28v
- Compatible with 14v and 28v systems
- Fully adjustable in two directions (thru-panel version)
- Fully adjustable in multiple directions (gooseneck version)
- Mounts in 15/32″ thru hole; Surface Mount Adapter available (P/N: SMA/MMII)
- Engineered and produced in adherence to AS9100 certification
- Exceptional durability and shock and vibration resistance
Tasklight 600 – NORSEE Approve
Available in Thru Panel Mount or with optional Surface Mount Adapter
6-Inch Flexible Shaft Gooseneck Mount
Applications
- Cockpit lighting
- Panel lighting
- Instrument lighting
- Map light
- Precision cabin lighting
- Aviation lighting
- Aircraft interior
- Chart light
Industries
- Airline
- Aerospace
- Military
- Boating
- Recreational vehicle
- Industrial settings

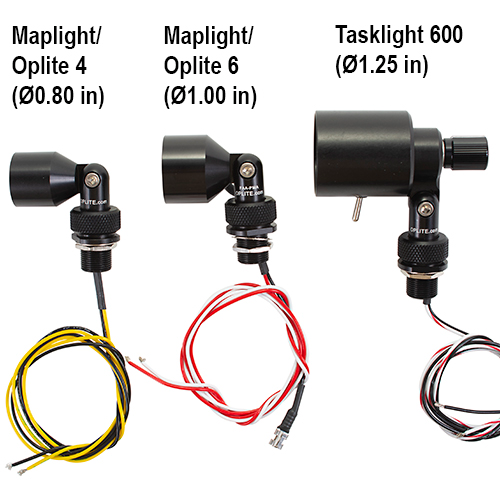

Tasklight 600
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Oplite 4
Experimental
4 LEDs
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 4
Oplite 6
Experimental
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Available in gooseneck
Maplight 6
6 LEDs
Dual Models: Red/White, Green/White, Blue/White
Single Models: Red, Green, Blue, or White
Gooseneck G4
